JS260NLC JCB excavator specs & Dimensions (2012 - 2019)

JCB JS260NLC is a Crawler Excavator manufactured from 2012 to 2019, with a weight of 25.78 tons. It features a track width of 600 …

JCB JS260NLC is a Crawler Excavator manufactured from 2012 to 2019, with a weight of 25.78 tons. It features a track width of 600 mm, a transport length of 10.08 meters, a transport width of 2.99 meters, and a transport height of 3.17 meters. The excavator has a tear-out force of 191 kN, a dredging depth of 5.72 meters, and a maximum horizontal reach of 8.99 meters. It is equipped with a bucket capacity of 1.35 cubic meters and includes air conditioning as special equipment.

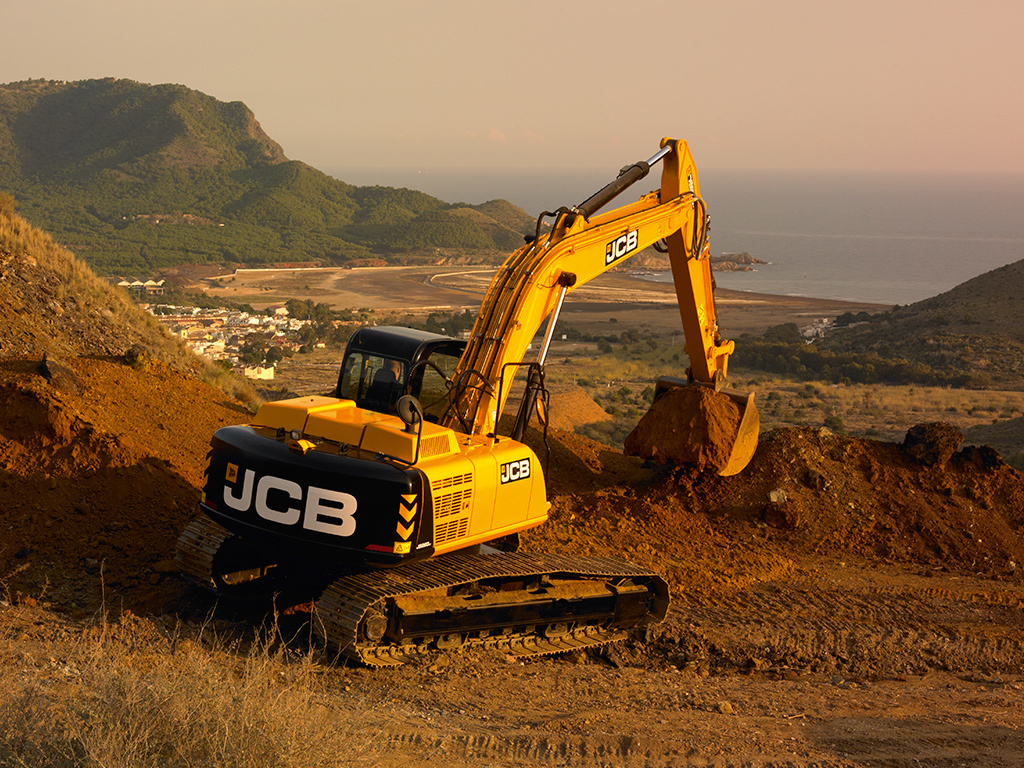

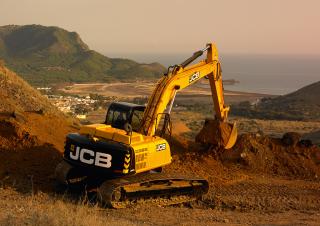

Crawler Excavators JCB JS260NLC
Crawler Excavators JCB JS260NLC
Crawler Excavators JCB JS260NLC
Crawler Excavators JCB JS260NLC
Crawler Excavators JCB JS260NLC
Crawler Excavators JCB JS260NLC

Visit JCB live at

Technical specs - JS260NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.78 t
Transport length
10.08 m
Transport width
2.99 m
Transport height
3.17 m
Bucket capacity
1.35 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.99 m
Dredging depth
5.72 m
Tear-out force
191 kN
Bucket width
1.5 m
Model series
JS
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
140 kW
Displacement
2.193 l
Revolutions at max torque
2000 rpm
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS260NLC FAQ

When was the JCB JS260NLC manufactured?

The JCB JS260NLC was manufactured from 2012 to 2019.

How much does the JCB JS260NLC weigh?

The JCB JS260NLC weighs 25.78 tons.

What are the transport dimensions of the JCB JS260NLC crawler excavator?

The JCB JS260NLC has a transport length of 10.08 meters, a transport width of 2.99 meters, and a transport height of 3.17 meters.

What are the undercarriage specifications of the JCB JS260NLC?

The JCB JS260NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS260NLC?

The JCB JS260NLC has a dredging depth of 5.72 meters, a maximum horizontal reach of 8.99 meters, and features a monobloc boom.

What is the tear-out force of the JCB JS260NLC?

The JCB JS260NLC has a tear-out force of 191 kN.

What are the bucket specifications of the JCB JS260NLC crawler excavator?

The JCB JS260NLC crawler excavator has a bucket capacity of 1.35 cubic meters and a bucket width of 1.5 meters.

How much is a JCB JS260NLC Crawler excavator (2012u20132019) worth?

The residual value of the JCB JS260NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB JS260NLC overview

JCB JS260NLC features overview

A history of innovation

We’ve been innovating since day one, and we’ve always cultivated a uniquely fearless approach to design. Indeed, we’ve invented whole new genres of machinery – the Fastrac and the telehandler for example – and revolutionised others like the skid steer loader.


Engine

Working environment

The JS115/130/145 creates a quieter working environment inside and out. Because we've reduced noise levels to 72dB(A) inside and 99dB(A) outside, you can use the machine at any location, any time.


Excellent versatility

The JS160/180/190 is a hugely versatile machine that's made all the more so by a big range of attachments, enabling you to carry out a wide range of tasks.


Hydraulic and electronic system

The safe choice

There's no need to climb onto the JS115/130/145 to check oil levels; all routine servicing can be done from ground level.


Extremely productive

With a massive 92kN bucket tearout and fast cycle times, the JS115/130/145 is extremely productive in all applications.


Stability and hydraulics

JCB’s innovative hydraulic regeneration system means oil is recycled across the cylinders for faster cycle times and reduced fuel consumption.


Upper Structure

High tensile strength

The reinforced boom and dipper is made of high tensile strength steel, with single piece wrapper plates and internal baffle plates.


Structural strength

The high strength undercarriage of a JCB115/130/145 uses a fully welded X frame construction for long term durability.


Strength and durability

JCB JS160/180/190's boast the best components in the industry, including Berco running gear, Kawasaki pumps, Kayaba valve blocks and JCB EcoMAX engines.


Boom and dipper

A JCB JS330/360 has cushioned boom and dipper ends to prevent shock loadings, protect your machine and increase operator comfort.


Cab

Easy does it

JCB JS115/130/145 bonnets open and close easily with gas-assisted cylinders, and the service bays are large and wide for good access.


Comfortably in control

Light, intuitive and smooth controls improve comfort and productivity. The JS160/180/190's joystick-mounted power boost button gives extra hydraulic power fast. Additionally, the JS330/360’s cab and controls are independently adjustable, making it easy to find the perfect operating position.


Visibility and safety

Your JS160/180/190 is equipped with a full set of side and rear view mirrors for all round visibility and safety compliance.


Excellent visibility

A 70/30 front screen split gives JCB JS200/210/220 excellent front visibility. A clear view of the front right track provides easy, safe trench digging and manoeuvring.
