JS240NLC JCB excavator specs & Dimensions (2017 - 2019)

JCB JS240NLC is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 24.78 tons. It features a track width of 600 …

JCB JS240NLC is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 24.78 tons. It features a track width of 600 mm, a transport length of 10.08 meters, a transport width of 2.99 meters, and a transport height of 3.17 meters. The machine has a tear-out force of 191 kN, a dredging depth of 5.72 meters, and a maximum horizontal reach of 8.99 meters. The bucket width is 1.2 meters, with a bucket capacity of 1.12 cubic meters. It is equipped with air conditioning.

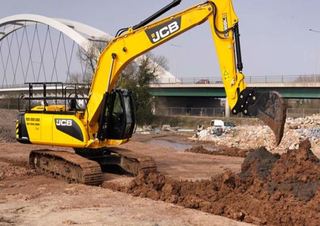

Crawler Excavators JCB JS240NLC

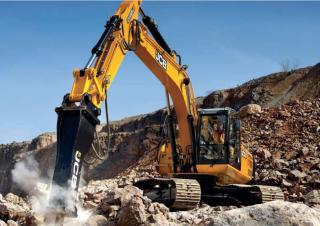

Crawler Excavators JCB JS240NLC
Crawler Excavators JCB JS240NLC
Crawler Excavators JCB JS240NLC
Crawler Excavators JCB JS240NLC
Crawler Excavators JCB JS240NLC

Visit JCB live at

Technical specs - JS240NLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.78 t
Transport length
10.08 m
Transport width
2.99 m
Transport height
3.17 m
Bucket capacity
1.12 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.99 m
Dredging depth
5.72 m
Tear-out force
191 kN
Bucket width
1.2 m
Model series
JS
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
140 kW
Displacement
2.193 l
Revolutions at max torque
2000 rpm
Emission level
4i/3b

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS240NLC FAQ

When was the JCB JS240NLC manufactured?

The JCB JS240NLC was manufactured from 2017 to 2019.

How much does the JCB JS240NLC weigh?

The JCB JS240NLC weighs 24.78 tons.

What are the transport dimensions of the JCB JS240NLC crawler excavator?

The JCB JS240NLC has a transport length of 10.08 meters, a transport width of 2.99 meters, and a transport height of 3.17 meters.

What are the undercarriage specifications of the JCB JS240NLC?

The JCB JS240NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB JS240NLC?

The JCB JS240NLC has a dredging depth of 5.72 meters, a maximum horizontal reach of 8.99 meters, and is equipped with a Monobloc boom.

What is the power rating of the JCB JS240NLC?

The power rating of the JCB JS240NLC is not provided in the available data.

What are the specifications of the primary work tool bucket on the JCB JS240NLC?

The primary work tool bucket of the JCB JS240NLC has a capacity of 1.12 cubic meters and a width of 1.2 meters.

How much is a JCB JS240NLC Crawler excavator (2017u20132019) worth?

The residual value of the JCB JS240NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
