JS220LC JCB excavator specs & Dimensions (2013 - 2017)

JCB JS220LC is a Crawler Excavator manufactured from 2013 to 2017, with a weight of 21.9 tons. It features a track width of 600 mm…

JCB JS220LC is a Crawler Excavator manufactured from 2013 to 2017, with a weight of 21.9 tons. It features a track width of 600 mm, a transport length of 9.58 meters, a transport width of 2.99 meters, and a transport height of 3.18 meters. The machine has a tear-out force of 138.2 kN, a dredging depth of 6.16 meters, and a maximum horizontal reach of 9.14 meters. The bucket width is 1.5 meters, and the bucket capacity is 1.25 cubic meters.

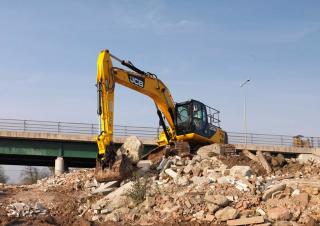

Crawler Excavators JCB JS220LC
Crawler Excavators JCB JS220LC
Crawler Excavators JCB JS220LC
Crawler Excavators JCB JS220LC
Crawler Excavators JCB JS220LC
Crawler Excavators JCB JS220LC

Visit JCB live at

Technical specs - JS220LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.9 t
Transport length
9.58 m
Transport width
2.99 m
Transport height
3.18 m
Bucket capacity
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.14 m
Dredging depth
6.16 m
Tear-out force
138.2 kN
Bucket width
1.5 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax
Engine power
129 kW
Displacement
4.8 l
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS220LC FAQ

When was the JCB JS220LC manufactured?

The JCB JS220LC was manufactured from 2013 to 2017.

How much does the JCB JS220LC weigh?

The JCB JS220LC weighs 21.9 tons.

What are the transport dimensions of the JCB JS220LC crawler excavator?

The JCB JS220LC has a transport length of 9.58 meters, a transport width of 2.99 meters, and a transport height of 3.18 meters.

What are the undercarriage specifications of the JCB JS220LC?

The JCB JS220LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS220LC?

The JCB JS220LC has a dredging depth of 6.16 meters, a maximum horizontal reach of 9.14 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB JS220LC crawler excavator, given that no power ratings are provided?

The JCB JS220LC crawler excavator has a tear-out force of 138.2 kN. No power ratings are provided in the available data.

What are the specifications of the primary work tool (bucket) on the JCB JS220LC?

The JCB JS220LC has a bucket with a capacity of 1.25 cubic meters and a width of 1.5 meters.

How much is a JCB JS220LC Crawler excavator (2013u20132017) worth?

The residual value of the JCB JS220LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
