JS200 NC JCB excavator specs & Dimensions (2004 - 2026)

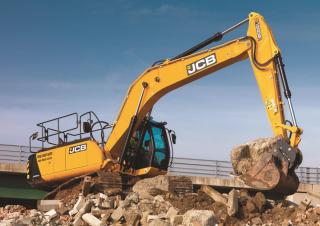

JCB JS200 NC is a Crawler Excavator manufactured since 2004. It has a weight of 21.19 tons and a track width of 500 mm. The transp…

JCB JS200 NC is a Crawler Excavator manufactured since 2004. It has a weight of 21.19 tons and a track width of 500 mm. The transport dimensions are 9.44 meters in length, 2.49 meters in width, and 2.946 meters in height. The machine features a tear-out force of 155 kN, a dredging depth of 6.6 meters, and a maximum horizontal reach of 9.7 meters. The bucket width is 1.5 meters, with a capacity of 1.19 cubic meters.

Crawler Excavators JCB JS200 NC

Visit JCB live at

Technical specs - JS200 NC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.19 t
Transport length
9.44 m
Transport width
2.49 m
Transport height
2.946 m
Bucket capacity
1.19 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.6 m
Tear-out force
155 kN
Bucket width
1.5 m
Engine manuf.
Isuzu
Engine type
BB-6BGIT
Engine power
102 kW
Displacement
6.494 l
Revolutions at max torque
1950 rpm
No. of cylinders
6
Emission level
Tier II

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS200 NC FAQ

When was the JCB JS200 NC manufactured?

The JCB JS200 NC was first produced in 2004.

How much does the JCB JS200 NC weigh?

The JCB JS200 NC weighs 21.19 tons.

What are the transport dimensions of the JCB JS200 NC crawler excavator?

The JCB JS200 NC has a transport length of 9.44 meters, a transport width of 2.49 meters, and a transport height of 2.95 meters.

What are the undercarriage specifications of the JCB JS200 NC?

The JCB JS200 NC has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the JCB JS200 NC?

The JCB JS200 NC has a dredging depth of 6.6 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB JS200 NC, and is there any power rating information available?

The JCB JS200 NC has a tear-out force of 155 kN. The source data does not provide any power rating information for this model.

What are the bucket specifications of the JCB JS200 NC excavator?

The JCB JS200 NC has a bucket capacity of 1.19 cubic meters and a bucket width of 1.5 meters.

How much is a JCB JS200 NC Crawler excavator (2004u20132025) worth?

The residual value of the JCB JS200 NC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
