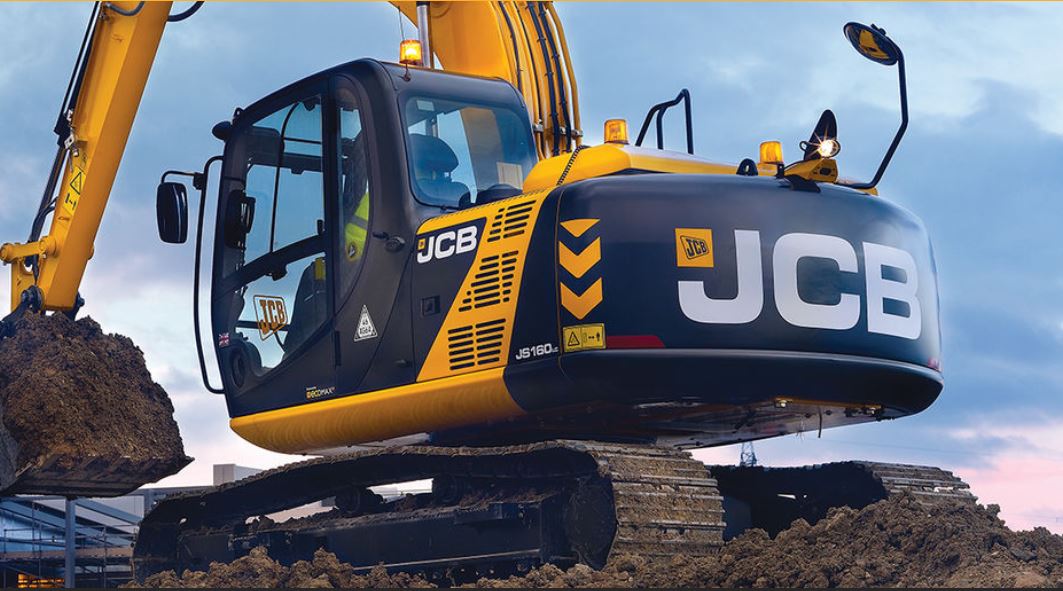

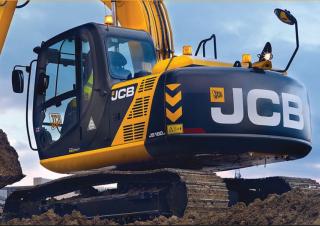

JS160LC HRC JCB excavator specs & Dimensions (2017 - 2019)

JCB JS160LC HRC is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 17.54 tons. It features a track width of 6…

JCB JS160LC HRC is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 17.54 tons. It features a track width of 600 mm, a transport length of 8.3 meters, a transport width of 2.59 meters, and a transport height of 3.14 meters. The machine has a tear-out force of 116.1 kN, a dredging depth of 5.38 meters, and a maximum horizontal reach of 8.65 meters. The bucket width is 0.91 meters, with a bucket capacity of 0.59 cubic meters. It is equipped with air conditioning.

Crawler Excavators JCB JS160LC HRC

Visit JCB live at

Technical specs - JS160LC HRC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.54 t
Transport length
8.3 m
Transport width
2.59 m
Transport height
3.14 m
Bucket capacity
0.59 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.65 m
Dredging depth
5.38 m
Tear-out force
116.1 kN
Bucket width
0.91 m
Model series
JS
Engine manuf.
JCB
Engine type
EcoMax 444 TCA-99
Engine power
93 kW
Displacement
5.193 l
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS160LC HRC FAQ

When was the JCB JS160LC HRC manufactured?

The JCB JS160LC HRC was manufactured from 2017 to 2019.

How much does the JCB JS160LC HRC weigh?

The JCB JS160LC HRC weighs 17.54 tons.

What are the transport dimensions of the JCB JS160LC HRC?

The JCB JS160LC HRC has a transport length of 8.3 meters, a transport width of 2.59 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the JCB JS160LC HRC?

The JCB JS160LC HRC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS160LC HRC?

The JCB JS160LC HRC has a dredging depth of 5.38 meters, a maximum horizontal reach of 8.65 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB JS160LC HRC?

The JCB JS160LC HRC has a tear-out force of 116.1 kN.

What are the specifications of the primary work tool bucket on the JCB JS160LC HRC?

The primary work tool bucket of the JCB JS160LC HRC has a capacity of 0.59 cubic meters and a width of 0.91 meters.

How much is a JCB JS160LC HRC Crawler excavator (2017u20132019) worth?

The residual value of the JCB JS160LC HRC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
