JS160 JCB excavator specs & Dimensions (2021 - 2026)

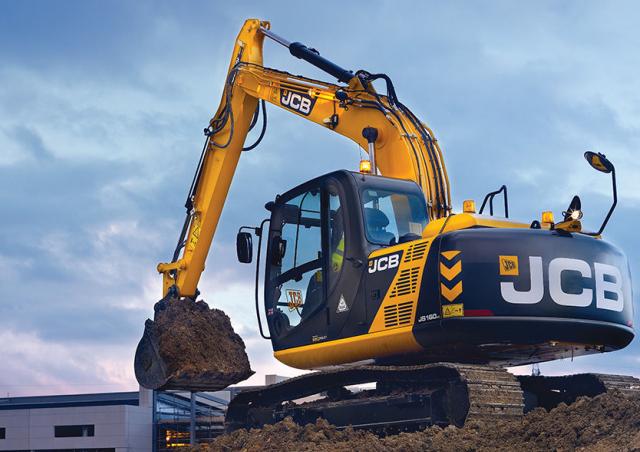

JCB JS160 is a crawler excavator manufactured since 2021, with a weight of 17.2 tons. It features a track width of 500 mm, a trans…

JCB JS160 is a crawler excavator manufactured since 2021, with a weight of 17.2 tons. It features a track width of 500 mm, a transport length of 8.3 meters, a transport width of 2.47 meters, and a transport height of 2.99 meters. The machine has a dredging depth of 5.4 meters and a maximum horizontal reach of 8.5 meters.

Crawler Excavators JCB JS160

Visit JCB live at

Technical specs - JS160 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.2 t
Transport length
8.3 m
Transport width
2.47 m
Transport height
2.99 m
Undercarriage
LC
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.5 m
Dredging depth
5.4 m
Model series
JS
Engine manuf.
JCB
Engine type
DieselMax
Engine power
97 kW
Displacement
4.8 l
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS160 FAQ

When was the JCB JS160 manufactured?

The JCB JS160 was first produced in 2021.

How much does the JCB JS160 weigh?

The JCB JS160 weighs 17.2 tons.

What are the transport dimensions of the JCB JS160 crawler excavator?

The JCB JS160 crawler excavator has a transport length of 8.3 meters, a transport width of 2.47 meters, and a transport height of 2.99 meters.

What are the undercarriage specifications of the JCB JS160?

The JCB JS160 has a long undercarriage and a track width of 500 mm.

What are the excavation performance specifications of the JCB JS160 crawler excavator?

The JCB JS160 crawler excavator has a dredging depth of 5.4 meters, a maximum horizontal reach of 8.5 meters, and features a monobloc boom.

How much is a JCB JS160 Crawler excavator (2021u20132025) worth?

The residual value of the JCB JS160 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
