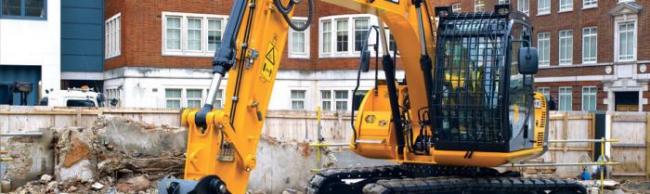

JS115 JCB excavator specs & Dimensions (2012 - 2017)

JCB JS115 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 12.24 tons. It features a track width of 600 mm,…

JCB JS115 is a Crawler Excavator manufactured from 2012 to 2017, with a weight of 12.24 tons. It features a track width of 600 mm, a transport length of 7.35 meters, a transport width of 2.59 meters, and a transport height of 2.86 meters. The excavator is equipped with a blade.

Crawler Excavators JCB JS115

Visit JCB live at

Technical specs - JS115 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.24 t
Transport length
7.35 m
Transport width
2.59 m
Transport height
2.86 m
Bucket capacity
0.46 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.28 m
Dredging depth
5.57 m
Tear-out force
47.3 kN
Bucket width
0.7 m
Model series
JS
Engine manuf.
JCB
Engine type
444 TCA 81
Engine power
81 kW
Displacement
4.4 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS115 FAQ

When was the JCB JS115 manufactured?

The JCB JS115 was manufactured from 2012 to 2017.

How much does the JCB JS115 weigh?

The JCB JS115 weighs 12.24 tons.

What are the transport dimensions of the JCB JS115 crawler excavator?

The JCB JS115 crawler excavator has a transport length of 7.35 meters, a transport width of 2.59 meters, and a transport height of 2.86 meters.

What is the track width of the JCB JS115's undercarriage?

The JCB JS115 has a track width of 600 mm.

What are the excavation performance specifications of the JCB JS115 crawler excavator?

The JCB JS115 crawler excavator has a dredging depth of 5.57 meters, a maximum horizontal reach of 8.28 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB JS115?

The JCB JS115 has a tear-out force of 47.3 kN.

What are the specifications of the primary work tool on the JCB JS115?

The primary work tool of the JCB JS115 has a bucket capacity of 0.46 cubic meters and a bucket width of 0.7 meters.

How much is a JCB JS115 Crawler excavator (2012u20132017) worth?

The residual value of the JCB JS115 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB JS115 overview

JCB JS115 features overview

A history of innovation

We’ve been innovating since day one, and we’ve always cultivated a uniquely fearless approach to design. Indeed, we’ve invented whole new genres of machinery – the Fastrac and the telehandler for example – and revolutionised others like the skid steer loader.


Engine

Working environment

The JS115/130/145 creates a quieter working environment inside and out. Because we've reduced noise levels to 72dB(A) inside and 99dB(A) outside, you can use the machine at any location, any time.


Excellent versatility

The JS160/180/190 is a hugely versatile machine that's made all the more so by a big range of attachments, enabling you to carry out a wide range of tasks.


Hydraulic and electronic system

The safe choice

There's no need to climb onto the JS115/130/145 to check oil levels; all routine servicing can be done from ground level.


Extremely productive

With a massive 92kN bucket tearout and fast cycle times, the JS115/130/145 is extremely productive in all applications.


Strength and durability

JCB JS160/180/190's boast the best components in the industry, including Berco running gear, Kawasaki pumps, Kayaba valve blocks and JCB EcoMAX engines.


Stability and hydraulics

JCB’s innovative hydraulic regeneration system means oil is recycled across the cylinders for faster cycle times and reduced fuel consumption.


Undercarriage

High tensile strength

The reinforced boom and dipper is made of high tensile strength steel, with single piece wrapper plates and internal baffle plates.


Structural strength

The high strength undercarriage of a JCB115/130/145 uses a fully welded X frame construction for long term durability.


Upper Structure

Boom and dipper

A JCB JS330/360 has cushioned boom and dipper ends to prevent shock loadings, protect your machine and increase operator comfort.


Cab

Easy does it

JCB JS115/130/145 bonnets open and close easily with gas-assisted cylinders, and the service bays are large and wide for good access.


Comfortably in control

Light, intuitive and smooth controls improve comfort and productivity. The JS160/180/190's joystick-mounted power boost button gives extra hydraulic power fast. The JS330/360’s cab and controls are independently adjustable so that it’s easy to find the perfect operating position.


Visibility and safety

Your JS160/180/190 is equipped with a full set of side and rear view mirrors for all round visibility and safety compliance.


Excellent visibility

A 70/30 front screen split gives JCB JS200/210/220 excellent front visibility. A clear view of the front right track provides easy, safe trench digging and manoeuvring.
