JS 220 LC JCB excavator specs & Dimensions (2007 - 2013)

JCB JS 220 LC is a Crawler Excavator manufactured from 2007 to 2013, with a weight of 22.2 tons. It features a track width of 600 …

JCB JS 220 LC is a Crawler Excavator manufactured from 2007 to 2013, with a weight of 22.2 tons. It features a track width of 600 mm, a transport length of 9.58 meters, a transport width of 2.99 meters, and a transport height of 3.07 meters. The machine has a tear-out force of 9590 kN and a bucket width of 1.524 meters.

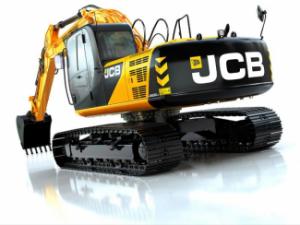

Crawler Excavators JCB JS 220 LC
Crawler Excavators JCB JS 220 LC
Crawler Excavators JCB JS 220 LC
Crawler Excavators JCB JS 220 LC

Visit JCB live at

Technical specs - JS 220 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.2 t
Transport length
9.58 m
Transport width
2.99 m
Transport height
3.07 m
Bucket capacity
1.2 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.85 m
Dredging depth
6.7 m
Tear-out force
9590 kN
Bucket width
1.524 m
Model series
JS
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
128 kW
Displacement
5.199 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 220 LC FAQ

When was the JCB JS 220 LC manufactured?

The JCB JS 220 LC was manufactured from 2007 to 2013.

How much does the JCB JS 220 LC weigh?

The JCB JS 220 LC weighs 22.2 tons.

What are the transport dimensions of the JCB JS 220 LC crawler excavator?

The JCB JS 220 LC has a transport length of 9.58 meters, a transport width of 2.99 meters, and a transport height of 3.07 meters.

What are the undercarriage specifications of the JCB JS 220 LC?

The JCB JS 220 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS 220 LC?

The JCB JS 220 LC has a dredging depth of 6.7 meters, a maximum horizontal reach of 9.85 meters, and features a Monobloc boom.

What is the tear-out force of the JCB JS 220 LC?

The JCB JS 220 LC has a tear-out force of 9590 kN.

What are the specifications of the primary work tool bucket on the JCB JS 220 LC?

The primary work tool bucket of the JCB JS 220 LC has a capacity of 1.2 cubic meters and a width of 1.524 meters.
