JS 210 LC JCB excavator specs & Dimensions (2007 - 2013)

JCB JS 210 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 21.5 tons. It features a track width of 600 …

JCB JS 210 LC is a crawler excavator manufactured from 2007 to 2013, with a weight of 21.5 tons. It features a track width of 600 mm, a transport length of 9.56 meters, and a transport width of 3.06 meters. The machine has a tear-out force of 155 kN.

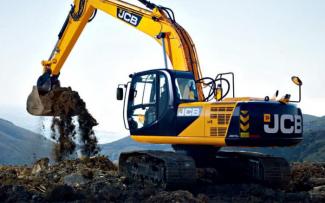

Crawler Excavators JCB JS 210 LC
Crawler Excavators JCB JS 210 LC
Crawler Excavators JCB JS 210 LC
Crawler Excavators JCB JS 210 LC

Visit JCB live at

Technical specs - JS 210 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.5 t
Transport length
9.56 m
Transport width
3.06 m
Bucket capacity
1.05 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Dredging depth
6.6 m
Tear-out force
155 kN
Model series
JS
Engine manuf.
Isuzu
Engine type
4 HKIX
Engine power
128 kW
Displacement
5.199 l
Revolutions at max torque
2000 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., max. reach horizontal, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 210 LC FAQ

When was the JCB JS 210 LC manufactured?

The JCB JS 210 LC was manufactured from 2007 to 2013.

How much does the JCB JS 210 LC weigh?

The JCB JS 210 LC weighs 21.5 tons.

What are the transport dimensions of the JCB JS 210 LC?

The JCB JS 210 LC has a transport length of 9.56 meters and a transport width of 3.06 meters.

What are the undercarriage specifications of the JCB JS 210 LC?

The JCB JS 210 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS 210 LC?

The JCB JS 210 LC has a dredging depth of 6.6 meters and is equipped with a Monobloc boom.

What are the power ratings of the JCB JS 210 LC?

The source data does not provide power rating information for the JCB JS 210 LC.

What is the bucket capacity of the JCB JS 210 LC crawler excavator?

The JCB JS 210 LC has a bucket capacity of 1.05 cubic meters.

How much is a JCB JS 210 LC Crawler excavator (2007u20132013) worth?

The residual value of the JCB JS 210 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
