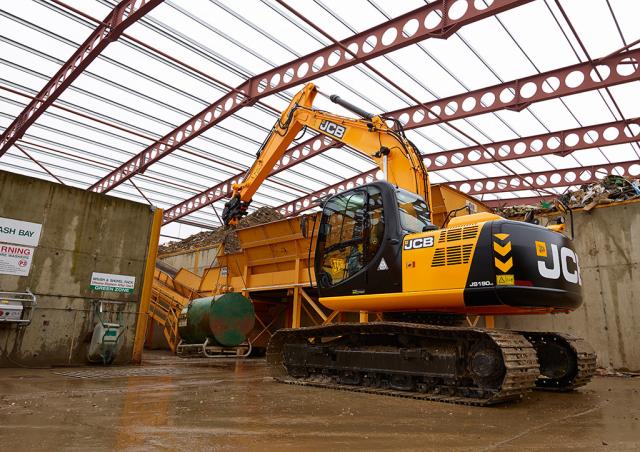

JS 180 LC JCB excavator specs & Dimensions (2007 - 2013)

JCB JS 180 LC is a Crawler Excavator manufactured from 2007 to 2013, with a weight of 18.7 t. It features a track width of 600 mm,…

JCB JS 180 LC is a Crawler Excavator manufactured from 2007 to 2013, with a weight of 18.7 t. It features a track width of 600 mm, a transport length of 8.42 m, a transport width of 2.8 m, and a transport height of 3.02 m.

Crawler Excavators JCB JS 180 LC

Visit JCB live at

Technical specs - JS 180 LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.7 t
Transport length
8.42 m
Transport width
2.8 m
Transport height
3.02 m
Bucket capacity
0.9 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.223 m
Dredging depth
6.598 m
Model series
JS
Engine manuf.
Isuzu
Engine type
4JJIX
Engine power
92 kW
Displacement
2.999 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS 180 LC FAQ

When was the JCB JS 180 LC manufactured?

The JCB JS 180 LC was manufactured from 2007 to 2013.

How much does the JCB JS 180 LC weigh?

The JCB JS 180 LC weighs 18.7 tons.

What are the transport dimensions of the JCB JS 180 LC crawler excavator?

The JCB JS 180 LC has a transport length of 8.42 meters, a transport width of 2.8 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the JCB JS 180 LC?

The JCB JS 180 LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB JS 180 LC?

The JCB JS 180 LC has a dredging depth of 6.598 meters, a maximum horizontal reach of 9.223 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the JCB JS 180 LC?

The JCB JS 180 LC has a bucket capacity of 0.9 cubic meters.

How much is a JCB JS 180 LC Crawler excavator (2007u20132013) worth?

The residual value of the JCB JS 180 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
