90Z-1 JCB excavator specs & Dimensions (2015 - 2020)

JCB 90Z-1 is a Crawler Excavator manufactured from 2015 to 2020, with a weight of 8.75 tons. It features a track width of 450 mm, …

JCB 90Z-1 is a Crawler Excavator manufactured from 2015 to 2020, with a weight of 8.75 tons. It features a track width of 450 mm, a transport length of 6.58 meters, a transport width of 2.3 meters, and a transport height of 2.71 meters. The machine has a tear-out force of 57.1 kN, a dredging depth of 7.39 meters, and a maximum horizontal reach of 7.49 meters. It is equipped with air conditioning.

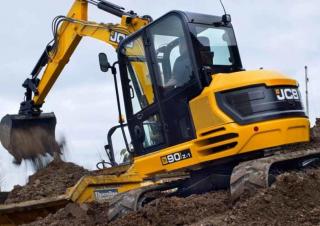

Crawler Excavators JCB 90Z-1
Crawler Excavators JCB 90Z-1
Crawler Excavators JCB 90Z-1
Crawler Excavators JCB 90Z-1
Crawler Excavators JCB 90Z-1
Crawler Excavators JCB 90Z-1

Visit JCB live at

Technical specs - 90Z-1 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.75 t
Transport length
6.58 m
Transport width
2.3 m
Transport height
2.71 m
Track width
450 mm
Boom
SKA
Max. Reach horizontal
7.49 m
Dredging depth
7.39 m
Tear-out force
57.1 kN
Engine manuf.
Kohler
Engine type
2504 TCR
Engine power
55 kW
Displacement
2.5 l
Emission level
III B

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 90Z-1 FAQ

When was the JCB 90Z-1 manufactured?

The JCB 90Z-1 was manufactured from 2015 to 2020.

How much does the JCB 90Z-1 weigh?

The JCB 90Z-1 weighs 8.75 tons.

What are the transport dimensions of the JCB 90Z-1 crawler excavator?

The JCB 90Z-1 crawler excavator has a transport length of 6.58 meters, a transport width of 2.3 meters, and a transport height of 2.71 meters.

What is the track width of the JCB 90Z-1 crawler excavator?

The JCB 90Z-1 crawler excavator has a track width of 450 mm.

What are the excavation performance specifications of the JCB 90Z-1?

The JCB 90Z-1 has a dredging depth of 7.39 meters, a maximum horizontal reach of 7.49 meters, and features a lateral articulated boom.

What are the power ratings of the JCB 90Z-1?

There are no power rating specifications available for the JCB 90Z-1 in the provided data.

How much is a JCB 90Z-1 Crawler excavator (2015u20132020) worth?

The residual value of the JCB 90Z-1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
