220X XD JCB excavator specs & Dimensions (2021 - 2026)

JCB 220X LC is a Crawler Excavator manufactured since 2021, with a weight of 22.738 t and a track width of 600 mm. It has a transp…

JCB 220X LC is a Crawler Excavator manufactured since 2021, with a weight of 22.738 t and a track width of 600 mm. It has a transport length of 12.546 m, a transport width of 2.77 m, and a transport height of 3.17 m. The excavator features a tear-out force of 126.6 kN, a dredging depth of 6.096 m, and a maximum horizontal reach of 9.361 m. The bucket width is 1.5 m, with a bucket capacity ranging from 0.38 m³ to 1.25 m³. Special equipment includes air conditioning, a blade, and a diesel particulate filter.

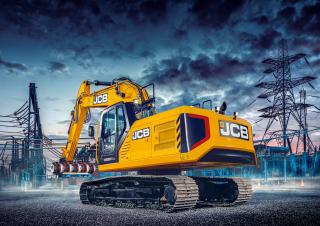

Crawler Excavators JCB 220X XD

Visit JCB live at

Technical specs - 220X XD JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.738 t
Transport length
12.546 m
Transport width
2.77 m
Transport height
3.17 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.361 m
Dredging depth
6.096 m
Tear-out force
126.6 kN
Bucket width
1.5 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: undercarriage, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 220X XD FAQ

When was the JCB 220X XD manufactured?

The JCB 220X XD was first produced in 2021.

How much does the JCB 220X XD weigh?

The JCB 220X XD weighs 22.74 tons.

What are the transport dimensions of the JCB 220X XD?

The JCB 220X XD has a transport length of 12.55 meters, a transport width of 2.77 meters, and a transport height of 3.17 meters.

What is the track width of the JCB 220X XD crawler excavator?

The JCB 220X XD crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the JCB 220X XD?

The JCB 220X XD has a dredging depth of 6.096 meters, a maximum horizontal reach of 9.361 meters, and features a monobloc boom.

What is the tear-out force of the JCB 220X XD?

The JCB 220X XD has a tear-out force of 126.6 kN.

What are the specifications of the primary work tool bucket on the JCB 220X XD?

The JCB 220X XD has a bucket with a capacity ranging from 0.38 to 1.25 cubic meters and a bucket width of 1.5 meters.

How much is a JCB 220X XD Crawler excavator (2021u20132025) worth?

The residual value of the JCB 220X XD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
