220X SLC JCB excavator specs & Dimensions (2018 - 2020)

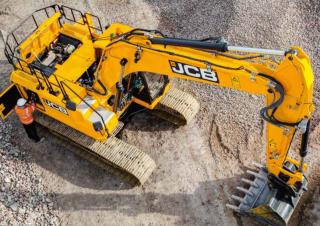

JCB 220X SLC is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 23 tons. It features a track width of 600 mm,…

JCB 220X SLC is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 23 tons. It features a track width of 600 mm, a transport length of 9.62 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters. The excavator has a tear-out force of 126.6 kN, a dredging depth of 6.1 meters, and a maximum horizontal reach of 9.36 meters. The bucket width is 1.5 meters, with a bucket capacity ranging from 0.38 m³ to 1.25 m³.

Crawler Excavators JCB 220X SLC

Visit JCB live at

Technical specs - 220X SLC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
9.62 m
Transport width
2.99 m
Transport height
3.2 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.36 m
Dredging depth
6.1 m
Tear-out force
126.6 kN
Bucket width
1.5 m
Model series
X
Engine manuf.
JCB
Engine type
EcoMax
Engine power
129 kW
Displacement
4.8 l
No. of cylinders
4
Emission level
IV

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 220X SLC FAQ

When was the JCB 220X SLC manufactured?

The JCB 220X SLC was manufactured from 2018 to 2020.

How much does the JCB 220X SLC weigh?

The JCB 220X SLC weighs 23 tons.

What are the transport dimensions of the JCB 220X SLC crawler excavator?

The JCB 220X SLC has a transport length of 9.62 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the JCB 220X SLC?

The JCB 220X SLC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the JCB 220X SLC?

The JCB 220X SLC has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.36 meters, and is equipped with a monobloc boom.

What is the tear-out force of the JCB 220X SLC?

The JCB 220X SLC has a tear-out force of 126.6 kN.

What are the specifications of the primary work tool (bucket) on the JCB 220X SLC?

The JCB 220X SLC's bucket has a capacity ranging from 0.38 to 1.25 cubic meters, with a standard capacity of 1.25 cubic meters and a width of 1.5 meters.
