210X LC JCB excavator specs & Dimensions (2021 - 2026)

JCB 220X LC is a Crawler Excavator manufactured since 2020, with a weight of 23.91 tons. It features a track width of 600 mm, a tr…

JCB 220X LC is a Crawler Excavator manufactured since 2020, with a weight of 23.91 tons. It features a track width of 600 mm, a transport length of 9.62 meters, a transport width of 2.77 meters, and a transport height of 3.27 meters. The excavator has a tear-out force of 126.6 kN, a dredging depth of 5.72 meters, and a maximum horizontal reach of 9.42 meters. The bucket width is 1.5 meters, with a bucket capacity ranging from 0.38 m³ to 1.25 m³. Special equipment includes air conditioning, a blade, and a diesel particulate filter.

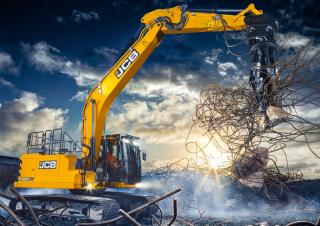

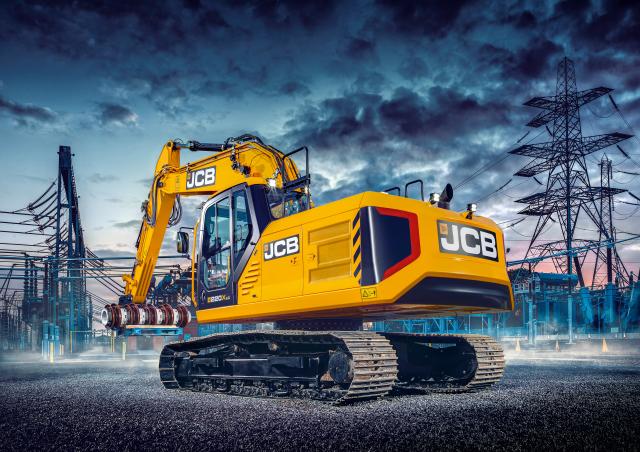

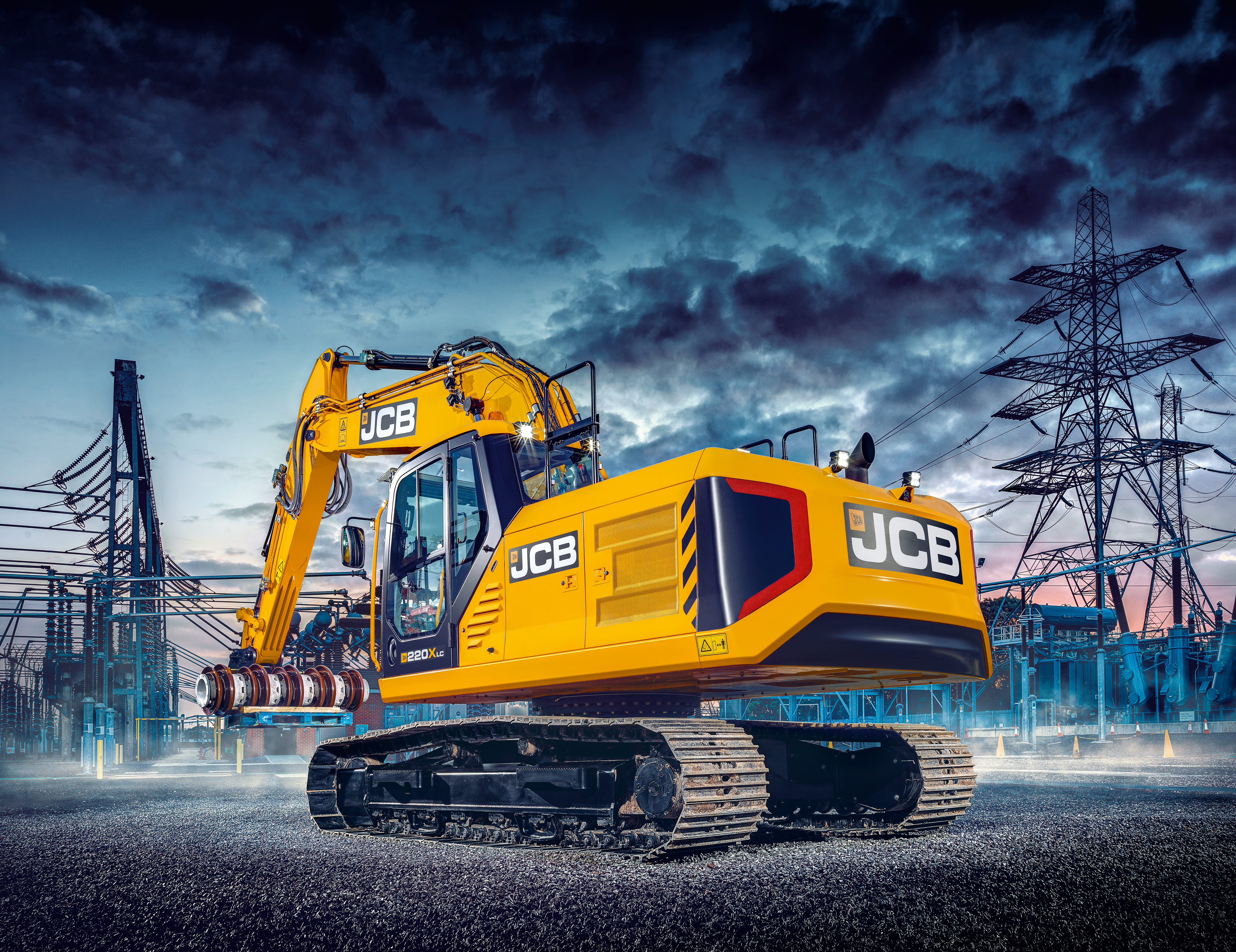

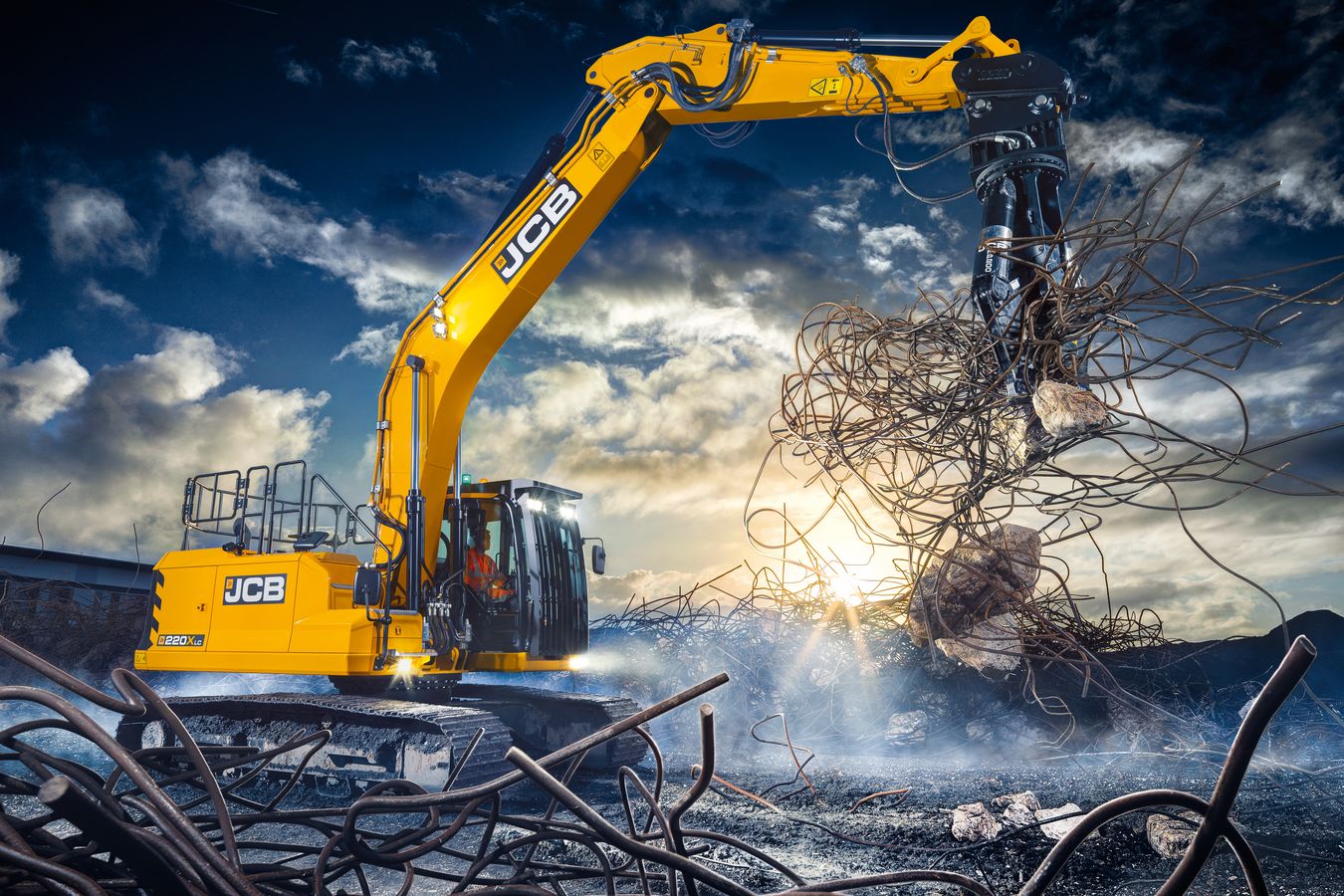

Crawler Excavators JCB 210X LC
Crawler Excavators JCB 210X LC
Crawler Excavators JCB 210X LC
Crawler Excavators JCB 210X LC

Visit JCB live at

Technical specs - 210X LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.91 t
Transport length
9.62 m
Transport width
2.77 m
Transport height
3.27 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.25 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.42 m
Dredging depth
5.72 m
Tear-out force
126.6 kN
Bucket width
1.5 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 210X LC FAQ

When was the JCB 210X LC manufactured?

The JCB 210X LC was first produced in 2021.

How much does the JCB 210X LC weigh?

The JCB 210X LC weighs 23.91 tons.

What are the transport dimensions of the JCB 210X LC crawler excavator?

The JCB 210X LC has a transport length of 9.62 meters, a transport width of 2.77 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the JCB 210X LC?

The JCB 210X LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB 210X LC?

The JCB 210X LC has a dredging depth of 5.72 meters, a maximum horizontal reach of 9.42 meters, and is equipped with a monobloc boom.

What are the power ratings of the JCB 210X LC?

There are no power rating specifications available for the JCB 210X LC in the provided data.

What are the specifications of the bucket on the JCB 210X LC crawler excavator?

The JCB 210X LC crawler excavator has a bucket capacity ranging from 0.38 to 1.25 cubic meters, with a bucket width of 1.5 meters.

How much is a JCB 210X LC Crawler excavator (2021u20132025) worth?

The residual value of the JCB 210X LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
