140X LC JCB excavator specs & Dimensions (2021 - 2026)

JCB 140X LC is a Crawler Excavator manufactured since 2020, with a weight of 14.737 tons. It features a track width of 600 mm, a t…

JCB 140X LC is a Crawler Excavator manufactured since 2020, with a weight of 14.737 tons. It features a track width of 600 mm, a transport length of 7.65 meters, a transport width of 2.59 meters, and a transport height of 2.87 meters. The excavator has a tear-out force of 64.4 kN, a dredging depth of 5.56 meters, and a maximum horizontal reach of 8.385 meters. The bucket width is 1.25 meters, with a capacity ranging from 0.21 m³ to 0.89 m³, and a standard capacity of 0.81 m³. Special equipment includes air conditioning, a blade, and a diesel particulate filter.

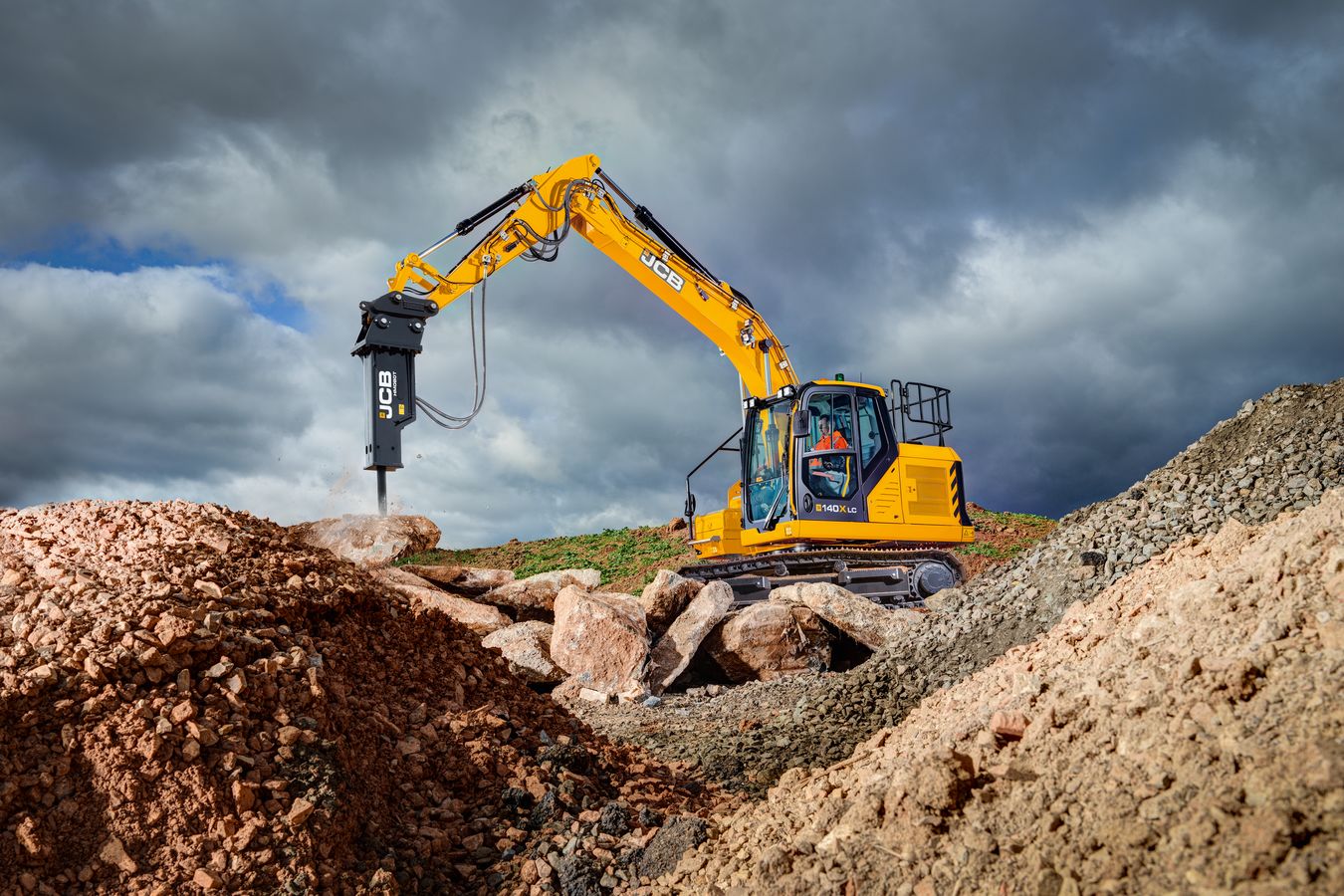

Crawler Excavators JCB 140X LC

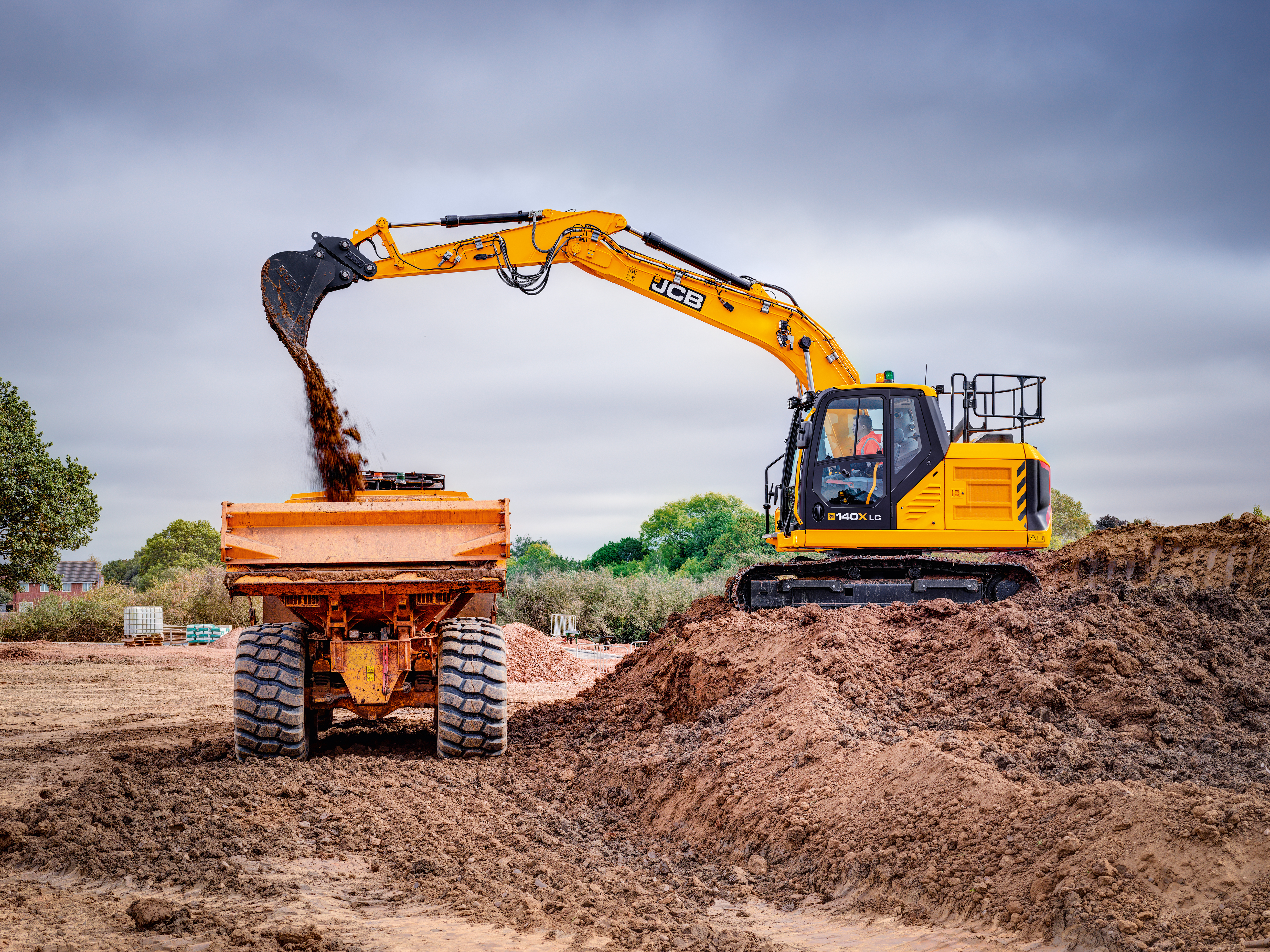

Crawler Excavators JCB 140X LC

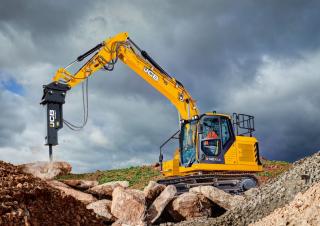

Crawler Excavators JCB 140X LC
Crawler Excavators JCB 140X LC

Visit JCB live at

Technical specs - 140X LC JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.737 t
Transport length
7.65 m
Transport width
2.59 m
Transport height
2.87 m
Bucket capacity
0.81 m³
Bucket capacity min.
0.21 m³
Bucket capacity max.
0.89 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.385 m
Dredging depth
5.56 m
Tear-out force
64.4 kN
Bucket width
1.25 m
Model series
X
Engine manuf.
JCB
Engine type
DieselMax
Engine power
81 kW
Displacement
4.8 l
Revolutions at max torque
1450 rpm
No. of cylinders
4
Emission level
V

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

JCB 140X LC FAQ

When was the JCB 140X LC manufactured?

The JCB 140X LC was first produced in 2021.

How much does the JCB 140X LC weigh?

The JCB 140X LC weighs 14.74 tons.

What are the transport dimensions of the JCB 140X LC crawler excavator?

The JCB 140X LC crawler excavator has a transport length of 7.65 meters, a transport width of 2.59 meters, and a transport height of 2.87 meters.

What are the undercarriage specifications of the JCB 140X LC?

The JCB 140X LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the JCB 140X LC?

The JCB 140X LC has a dredging depth of 5.56 meters, a maximum horizontal reach of 8.385 meters, and features a Monobloc boom.

What is the tear-out force of the JCB 140X LC?

The JCB 140X LC has a tear-out force of 64.4 kN. No power rating data is available for this model in the provided source.

What are the bucket specifications of the JCB 140X LC crawler excavator?

The JCB 140X LC has a bucket capacity of 0.81 cubic meters, with a maximum capacity of 0.89 cubic meters and a minimum capacity of 0.21 cubic meters, and a bucket width of 1.25 meters.

How much is a JCB 140X LC Crawler excavator (2021u20132025) worth?

The residual value of the JCB 140X LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
