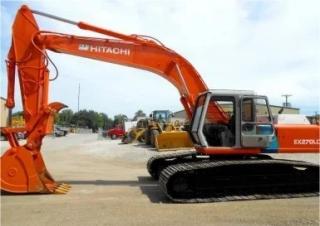

EX270LC Hitachi excavator specs & Dimensions (1986 - 1991)

Hitachi EX270LC is a crawler excavator manufactured from 1986 to 1991. It has a weight of 27.5 tons and a track width of 800 mm. T…

Hitachi EX270LC is a crawler excavator manufactured from 1986 to 1991. It has a weight of 27.5 tons and a track width of 800 mm. The transport dimensions are 10.45 meters in length, 3.19 meters in width, and 3 meters in height. The machine features a tear-out force of 178 kN, a dredging depth of 7.87 meters, and a maximum horizontal reach of 11.15 meters. The bucket capacity is 1.62 cubic meters.

Crawler Excavators Hitachi EX270LC

Visit Hitachi live at

Technical specs - EX270LC Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.5 t
Transport length
10.45 m
Transport width
3.19 m
Transport height
3 m
Bucket capacity
1.62 m³
Undercarriage
LC
Track width
800 mm
Max. Reach horizontal
11.15 m
Dredging depth
7.87 m
Tear-out force
178 kN
Engine manuf.
Hino
Engine type
H06CTi
Engine power
120 kW
Displacement
6.485 l
Revolutions at max torque
2100 rpm
Max. torque
588 Nm
No. of cylinders
6
Cylinder bore x stroke
108 x 113 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX270LC FAQ

When was the Hitachi EX270LC manufactured?

The Hitachi EX270LC was manufactured from 1986 to 1991.

How much does the Hitachi EX270LC weigh?

The Hitachi EX270LC weighs 27.5 tons.

What are the transport dimensions of the Hitachi EX270LC crawler excavator?

The Hitachi EX270LC has a transport length of 10.45 meters, a transport width of 3.19 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Hitachi EX270LC?

The Hitachi EX270LC has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Hitachi EX270LC?

The Hitachi EX270LC has a dredging depth of 7.87 meters and a maximum horizontal reach of 11.15 meters.

What is the tear-out force of the Hitachi EX270LC?

The Hitachi EX270LC has a tear-out force of 178 kN.

What is the bucket capacity of the Hitachi EX270LC crawler excavator?

The bucket capacity of the Hitachi EX270LC is 1.62 cubic meters.

How much is a Hitachi EX270LC Crawler excavator (1986u20131991) worth?

The residual value of the Hitachi EX270LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
