EX 1200-6 Hitachi excavator specs & Dimensions (2007 - 2012)

Model rating
8,50 / 10

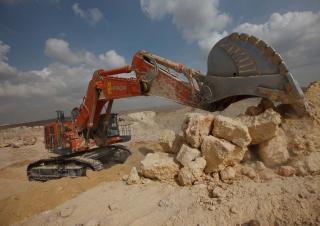

Hitachi EX 1200-6 is a Crawler Excavator manufactured from 2007 to 2012. It has a weight of 112 t and a track width of 710 mm. The…

Hitachi EX 1200-6 is a Crawler Excavator manufactured from 2007 to 2012. It has a weight of 112 t and a track width of 710 mm. The transport dimensions are 16.17 m in length, 5.47 m in width, and 5.72 m in height. The tear-out force is 438 kN. Special equipment includes air conditioning.

Crawler Excavators Hitachi EX 1200-6
Crawler Excavators Hitachi EX 1200-6
Crawler Excavators Hitachi EX 1200-6
Crawler Excavators Hitachi EX 1200-6
Crawler Excavators Hitachi EX 1200-6
Crawler Excavators Hitachi EX 1200-6

Visit Hitachi live at

Technical specs - EX 1200-6 Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
112 t
Transport length
16.17 m
Transport width
5.47 m
Transport height
5.72 m
Bucket capacity
7.1 m³
Undercarriage
HD
Track width
710 mm
Max. Reach horizontal
13.75 m
Dredging depth
8.05 m
Tear-out force
438 kN
Bucket width
1.89 m
Model series
EX
Engine manuf.
Cummins
Engine type
QSK23
Engine power
567 kW
Displacement
24.5 l
Revolutions at max torque
1200 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX 1200-6 FAQ

When was the Hitachi EX 1200-6 manufactured?

The Hitachi EX 1200-6 was manufactured from 2007 to 2012.

How much does the Hitachi EX 1200-6 weigh?

The Hitachi EX 1200-6 weighs 112 tons.

What are the transport dimensions of the Hitachi EX 1200-6?

The Hitachi EX 1200-6 has a transport length of 16.17 meters, a transport width of 5.47 meters, and a transport height of 5.72 meters.

What are the undercarriage specifications of the Hitachi EX 1200-6?

The Hitachi EX 1200-6 has a heavy duty undercarriage with a track width of 710 mm.

What are the excavation performance specifications of the Hitachi EX 1200-6?

The Hitachi EX 1200-6 has a dredging depth of 8.05 meters and a maximum horizontal reach of 13.75 meters.

What is the tear-out force of the Hitachi EX 1200-6?

The Hitachi EX 1200-6 has a tear-out force of 438 kN.

What are the bucket specifications of the Hitachi EX 1200-6 excavator?

The Hitachi EX 1200-6 excavator has a bucket capacity of 7.1 cubic meters and a bucket width of 1.89 meters.

How much is a Hitachi EX 1200-6 Crawler excavator (2007u20132012) worth?

The residual value of the Hitachi EX 1200-6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
