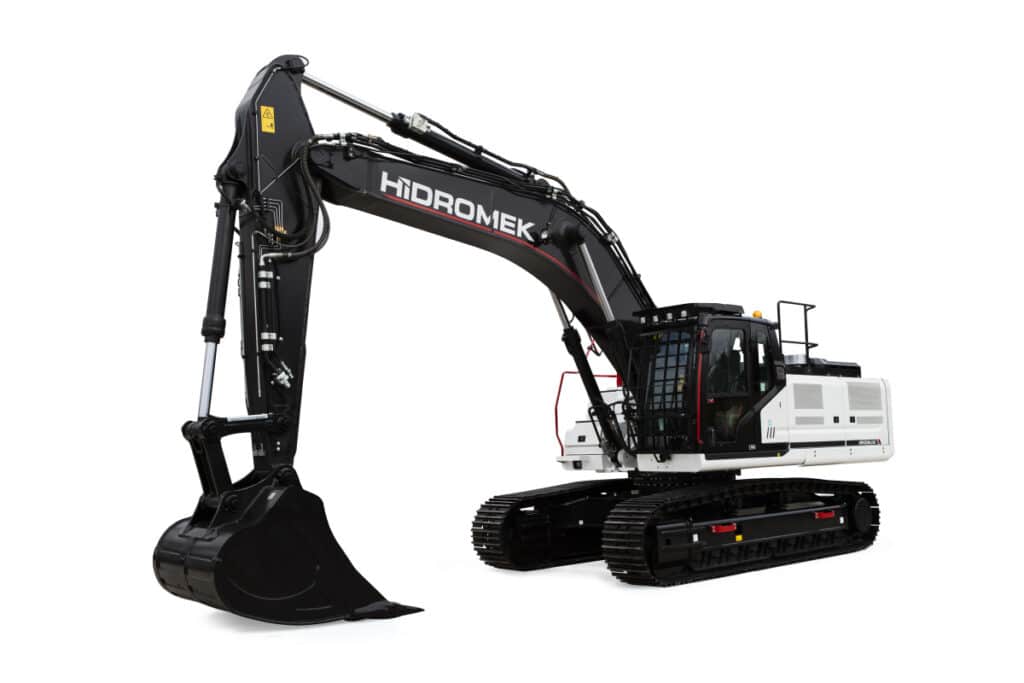

HMK 390 NLC Hidromek excavator specs & Dimensions (2019 - 2026)

Hidromek HMK 390 NLC is a Crawler Excavator manufactured since 2021, with a weight of 40.1 t and a track width of 600 mm. It has a…

Hidromek HMK 390 NLC is a Crawler Excavator manufactured since 2021, with a weight of 40.1 t and a track width of 600 mm. It has a transport length of 11.02 m, a transport width of 2.99 m, and a transport height of 3.64 m. The excavator features a tear-out force of 243.2 kN, a dredging depth of 6.56 m, and a maximum horizontal reach of 10.15 m. The bucket width is 1.75 m with a capacity of 2.2 m³. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, an overload alert, a quick hitch hydraulic system, and track adjustment.

Crawler Excavators Hidromek HMK 390 NLC

Visit Hidromek live at

Technical specs - HMK 390 NLC Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
40.2 t
Transport length
11.02 m
Transport width
2.99 m
Transport height
3.64 m
Bucket capacity
2.2 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.15 m
Dredging depth
6.56 m
Tear-out force
248 kN
Bucket width
1.75 m
Model series
HMK
Engine manuf.
Isuzu
Engine type
AH-6HK1X
Engine power
210 kW
Displacement
7.79 l
Revolutions at max torque
1900 rpm
Max. torque
1080/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
115x125 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Hidromek HMK 390 NLC FAQ

When was the Hidromek HMK 390 NLC manufactured?

The Hidromek HMK 390 NLC was first produced in 2019.

How much does the Hidromek HMK 390 NLC weigh?

The Hidromek HMK 390 NLC weighs 40.1 tons.

What are the transport dimensions of the Hidromek HMK 390 NLC?

The transport dimensions of the Hidromek HMK 390 NLC are 11.02 meters in length, 2.99 meters in width, and 3.64 meters in height.

What are the undercarriage specifications of the Hidromek HMK 390 NLC?

The Hidromek HMK 390 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Hidromek HMK 390 NLC?

The Hidromek HMK 390 NLC has a dredging depth of 6.56 meters, a maximum horizontal reach of 10.15 meters, and is equipped with a monobloc boom.

What is the power rating of the Hidromek HMK 390 NLC?

The source data does not provide power rating information for the Hidromek HMK 390 NLC.

What are the specifications of the primary work tool bucket on the Hidromek HMK 390 NLC?

The primary work tool bucket of the Hidromek HMK 390 NLC has a capacity of 2.2 cubic meters and a width of 1.75 meters.

How much is a Hidromek HMK 390 NLC Crawler excavator (2019u20132025) worth?

The residual value of the Hidromek HMK 390 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
