HMK 370 LC-HD Hidromek excavator specs & Dimensions (2009 - 2010)

Hidromek HMK 370 LC-HD is a crawler excavator manufactured from 2009 to 2010. It has a weight of 37.3 tons and a track width of 60…

Hidromek HMK 370 LC-HD is a crawler excavator manufactured from 2009 to 2010. It has a weight of 37.3 tons and a track width of 600 mm. The transport dimensions are 11 meters in length, 2.99 meters in width, and 3.81 meters in height. The machine features a tear-out force of 27.2 kN and a maximum horizontal reach of 10.39 meters. Special equipment includes air conditioning, cabin adjustment, and an overload alert system.

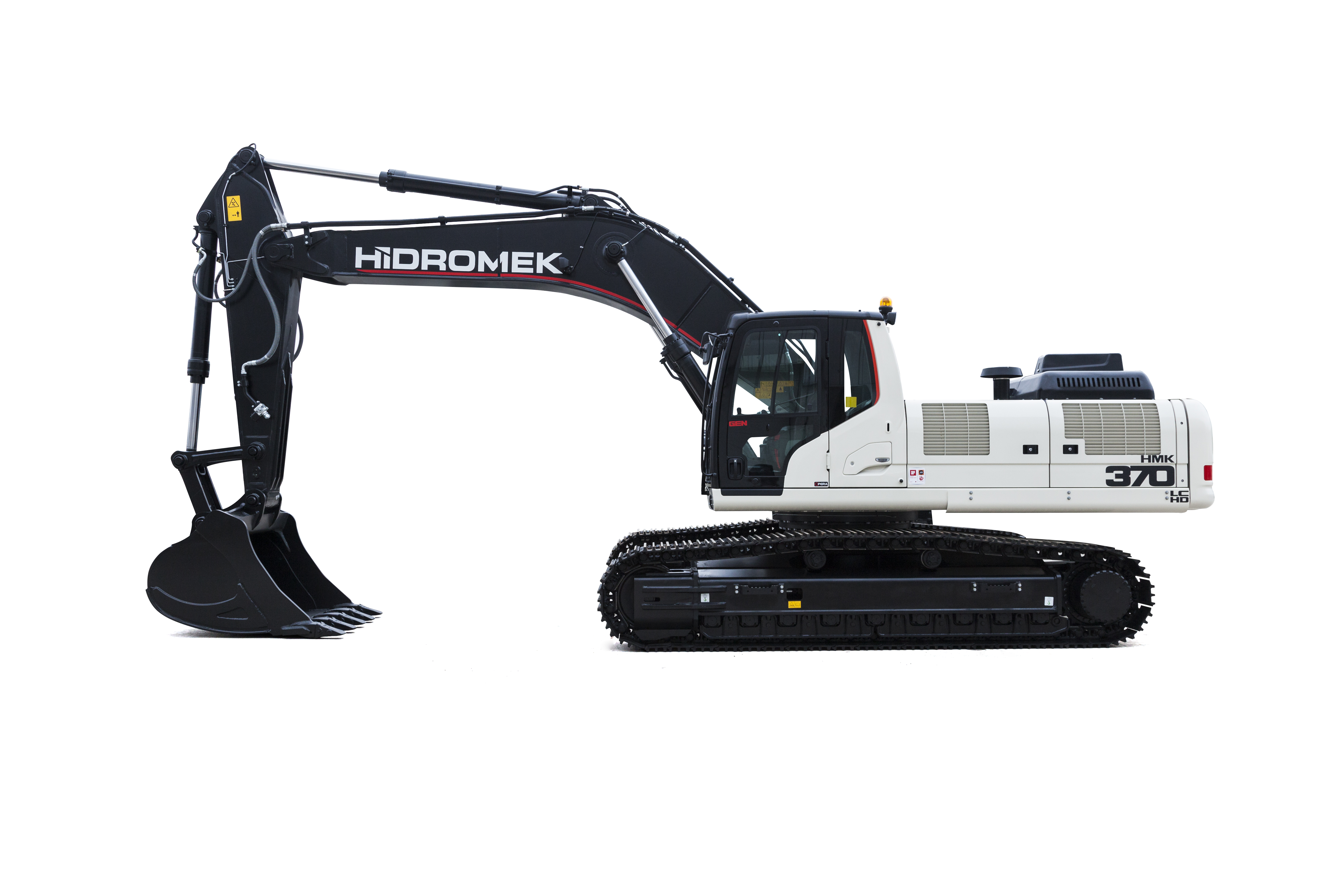

Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD
Crawler Excavators Hidromek HMK 370 LC-HD

Visit Hidromek live at

Technical specs - HMK 370 LC-HD Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.3 t
Transport length
11 m
Transport width
2.99 m
Transport height
3.81 m
Bucket capacity
1.2 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.39 m
Dredging depth
6.6 m
Tear-out force
27.2 kN
Bucket width
1.7 m
Model series
HMK
Engine manuf.
Isuzu
Engine type
AH 6 HK 1 XYSA 01
Engine power
202 kW
Displacement
7.79 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hidromek HMK 370 LC-HD FAQ

When was the Hidromek HMK 370 LC-HD manufactured?

The Hidromek HMK 370 LC-HD was manufactured from 2009 to 2010.

How much does the Hidromek HMK 370 LC-HD weigh?

The Hidromek HMK 370 LC-HD weighs 37.3 tons.

What are the transport dimensions of the Hidromek HMK 370 LC-HD?

The transport dimensions of the Hidromek HMK 370 LC-HD are 11 meters in length, 2.99 meters in width, and 3.81 meters in height.

What are the undercarriage specifications of the Hidromek HMK 370 LC-HD?

The Hidromek HMK 370 LC-HD has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Hidromek HMK 370 LC-HD?

The Hidromek HMK 370 LC-HD has a dredging depth of 6.6 meters, a maximum horizontal reach of 10.39 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Hidromek HMK 370 LC-HD?

The source data does not provide power ratings for the Hidromek HMK 370 LC-HD. However, it has a tear-out force of 27.2 kN.

What are the bucket specifications of the Hidromek HMK 370 LC-HD excavator?

The Hidromek HMK 370 LC-HD has a bucket capacity of 1.2 cubic meters and a bucket width of 1.7 meters.

How much is a Hidromek HMK 370 LC-HD Crawler excavator (2009u20132010) worth?

The residual value of the Hidromek HMK 370 LC-HD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
