EX 455 Fiat-Hitachi excavator specs & Dimensions (2000 - 2002)

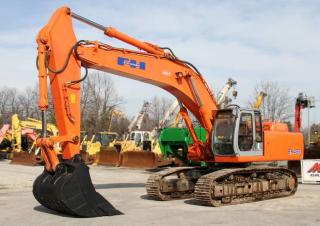

Fiat-Hitachi EX 455 is a crawler excavator manufactured from 2000 to 2002, with a weight of 48 tons. It features a track width of …

Fiat-Hitachi EX 455 is a crawler excavator manufactured from 2000 to 2002, with a weight of 48 tons. It features a track width of 600 mm, a transport length of 11.87 meters, a transport width of 3.19 meters, and a transport height of 4.3 meters.

Crawler Excavators Fiat-Hitachi EX 455

Technical specs - EX 455 Fiat-Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48 t
Transport length
11.87 m
Transport width
3.19 m
Transport height
4.3 m
Bucket capacity
2.26 m³
Undercarriage
LC
Track width
600 mm
Engine manuf.
Isuzu
Engine type
A 6 RB 1 T
Engine power
225 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat-Hitachi EX 455 FAQ

When was the Fiat-Hitachi EX 455 manufactured?

The Fiat-Hitachi EX 455 was manufactured from 2000 to 2002.

How much does the Fiat-Hitachi EX 455 weigh?

The Fiat-Hitachi EX 455 weighs 48 tons.

What are the transport dimensions of the Fiat-Hitachi EX 455 crawler excavator?

The Fiat-Hitachi EX 455 has a transport length of 11.87 meters, a transport width of 3.19 meters, and a transport height of 4.3 meters.

What are the undercarriage specifications of the Fiat-Hitachi EX 455?

The Fiat-Hitachi EX 455 has a long undercarriage and a track width of 600 mm.

What is the bucket capacity of the Fiat-Hitachi EX 455?

The bucket capacity of the Fiat-Hitachi EX 455 is 2.26 cubic meters.

How much is a Fiat-Hitachi EX 455 Crawler excavator (2000u20132002) worth?

The residual value of the Fiat-Hitachi EX 455 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
