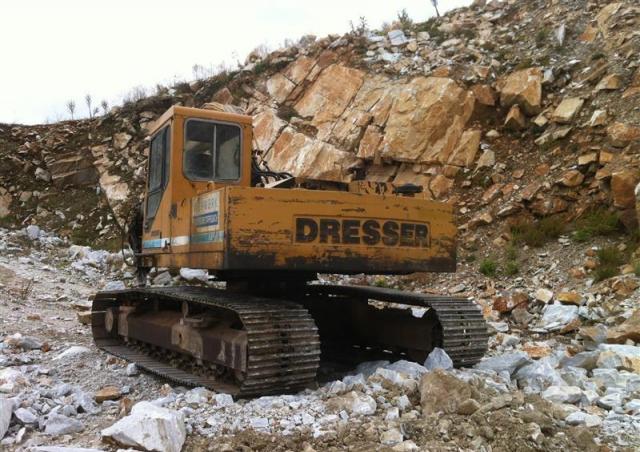

635 Dresser excavator specs & Dimensions (1986 - 1996)

Dresser 635 is a Crawler Excavator manufactured from 1986 to 1996. It has a weight of 35 tons and a track width of 500 mm. The tra…

Dresser 635 is a Crawler Excavator manufactured from 1986 to 1996. It has a weight of 35 tons and a track width of 500 mm. The transport dimensions are 8 meters in length, 2 meters in width, and 3 meters in height. The excavator features a tear-out force of 105 kN, a dredging depth of 9 meters, and a maximum horizontal reach of 6 meters. The bucket width is 2 meters with a maximum capacity of 1 cubic meter. Special equipment includes a blade, cabin adjustment, diesel particulate filter, and track adjustment.

Crawler Excavators Dresser 635

Technical specs - 635 Dresser

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.528 t
Transport length
8.98 m
Transport width
2.88 m
Transport height
3.14 m
Bucket capacity min.
0.3 m³
Bucket capacity max.
1 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
6.58 m
Dredging depth
9 m
Tear-out force
105 kN
Bucket width
2 m
Engine manuf.
Case International
Engine type
D358
Engine power
79 kW
Revolutions at max torque
1600 rpm
Max. torque
384 Nm
No. of cylinders
6

More technical details, like: bucket capacity, model series, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Dresser 635 FAQ

When was the Dresser 635 manufactured?

The Dresser 635 was manufactured from 1986 to 1996.

How much does the Dresser 635 crawler excavator weigh?

The Dresser 635 crawler excavator weighs 35.53 tons.

What are the transport dimensions of the Dresser 635 crawler excavator?

The Dresser 635 crawler excavator has a transport length of 8.98 meters, a transport width of 2.88 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the Dresser 635?

The Dresser 635 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Dresser 635 crawler excavator?

The Dresser 635 crawler excavator has a dredging depth of 9 meters, a maximum horizontal reach of 6.58 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Dresser 635 crawler excavator?

The Dresser 635 crawler excavator has a tear-out force of 105 kN.

What are the bucket specifications of the Dresser 635 crawler excavator?

The Dresser 635 crawler excavator has a bucket with a maximum capacity of 1 cubic meter and a width of 2 meters.

How much is a Dresser 635 Crawler excavator (1986u20131996) worth?

The residual value of the Dresser 635 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
