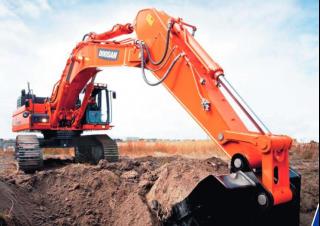

DX490LC-3 Doosan excavator specs & Dimensions (2013 - 2017)

Doosan DX490LC-3 is a crawler excavator manufactured from 2013 to 2017. It has a weight of 49 tons and a track width of 600 mm. Th…

Doosan DX490LC-3 is a crawler excavator manufactured from 2013 to 2017. It has a weight of 49 tons and a track width of 600 mm. The transport dimensions are 12.23 meters in length, 3.34 meters in width, and 3.58 meters in height. The excavator features a tear-out force of 222.6 kN and a bucket width of 1.547 meters.

Crawler Excavators Doosan DX490LC-3

Technical specs - DX490LC-3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49 t
Transport length
12.23 m
Transport width
3.34 m
Transport height
3.58 m
Bucket capacity
1.9 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.125 m
Dredging depth
7.79 m
Tear-out force
222.6 kN
Bucket width
1.547 m
Model series
DX
Engine manuf.
Isuzu
Engine type
AL 6 UZ 1 X
Engine power
367 kW
Displacement
9.389 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX490LC-3 FAQ

When was the Doosan DX490LC-3 manufactured?

The Doosan DX490LC-3 was manufactured from 2013 to 2017.

How much does the Doosan DX490LC-3 weigh?

The Doosan DX490LC-3 weighs 49 tons.

What are the transport dimensions of the Doosan DX490LC-3 crawler excavator?

The Doosan DX490LC-3 has a transport length of 12.23 meters, a transport width of 3.34 meters, and a transport height of 3.58 meters.

What are the undercarriage specifications of the Doosan DX490LC-3?

The Doosan DX490LC-3 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX490LC-3?

The Doosan DX490LC-3 has a dredging depth of 7.79 meters, a maximum horizontal reach of 12.125 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Doosan DX490LC-3?

The Doosan DX490LC-3 has a tear-out force of 222.6 kN.

What are the specifications of the primary work tool bucket on the Doosan DX490LC-3?

The primary work tool bucket of the Doosan DX490LC-3 has a capacity of 1.9 cubic meters and a width of 1.547 meters.
