DX420NLC-5 Doosan excavator specs & Dimensions (2015 - 2017)

Doosan DX420NLC-5 is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 42.6 tons and a track width of 600 mm.…

Doosan DX420NLC-5 is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 42.6 tons and a track width of 600 mm. The transport dimensions are 11.75 meters in length, 3 meters in width, and 3.455 meters in height. The excavator features a tear-out force of 193.2 kN, a dredging depth of 7.74 meters, and a maximum horizontal reach of 11.495 meters. The bucket width is 1.547 meters with a capacity of 1.9 cubic meters. Special equipment includes air conditioning and an overload alert system.

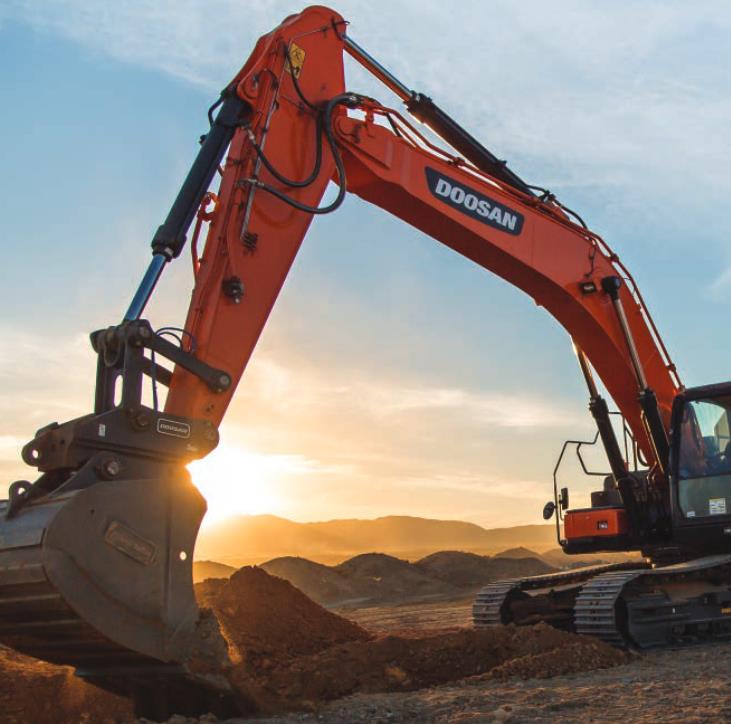

Crawler Excavators Doosan DX420NLC-5

Technical specs - DX420NLC-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
42.6 t
Transport length
11.75 m
Transport width
3 m
Transport height
3.455 m
Bucket capacity
1.9 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.495 m
Dredging depth
7.74 m
Tear-out force
193.2 kN
Bucket width
1.547 m
Model series
DX
Engine manuf.
Scania
Engine type
DC 13
Engine power
257 kW
Displacement
12.7 l
Revolutions at max torque
1300 rpm
Max. torque
1600 Nm
No. of cylinders
6
Cylinder bore x stroke
130x160 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX420NLC-5 FAQ

When was the Doosan DX420NLC-5 manufactured?

The Doosan DX420NLC-5 was manufactured from 2015 to 2017.

How much does the Doosan DX420NLC-5 weigh?

The Doosan DX420NLC-5 weighs 42.6 tons.

What are the transport dimensions of the Doosan DX420NLC-5 crawler excavator?

The Doosan DX420NLC-5 has a transport length of 11.75 meters, a transport width of 3 meters, and a transport height of 3.46 meters.

What are the undercarriage specifications of the Doosan DX420NLC-5?

The Doosan DX420NLC-5 has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX420NLC-5?

The Doosan DX420NLC-5 has a dredging depth of 7.74 meters, a maximum horizontal reach of 11.495 meters, and features a monobloc boom.

What are the power ratings of the Doosan DX420NLC-5?

There is no power rating information available for the Doosan DX420NLC-5 in the provided data.

What are the specifications of the primary work tool on the Doosan DX420NLC-5?

The primary work tool of the Doosan DX420NLC-5 has a bucket capacity of 1.9 cubic meters and a bucket width of 1.547 meters.

How much is a Doosan DX420NLC-5 Crawler excavator (2015u20132017) worth?

The residual value of the Doosan DX420NLC-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
