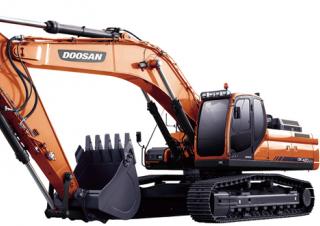

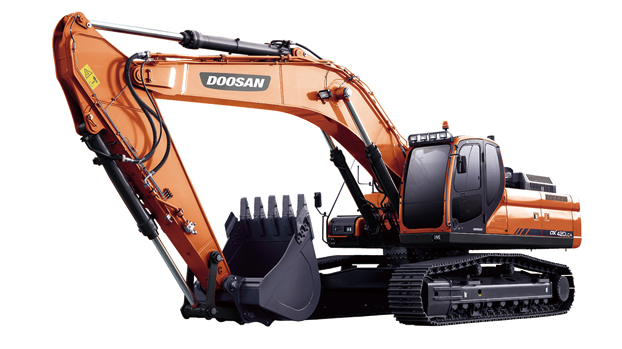

DX420LCA Doosan excavator specs & Dimensions (2019 - 2021)

Doosan DX420LCA is a crawler excavator manufactured from 2019 to 2021, with a weight of 41 tons. It features a track width of 600 …

Doosan DX420LCA is a crawler excavator manufactured from 2019 to 2021, with a weight of 41 tons. It features a track width of 600 mm, a transport length of 11 meters, a transport width of 3 meters, and a transport height of 3 meters. The machine has a tear-out force of 233 kN and comes equipped with air conditioning.

Crawler Excavators Doosan DX420LCA

Technical specs - DX420LCA Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
41 t
Transport length
11 m
Transport width
3 m
Transport height
3 m
Bucket capacity
1.9 m³
Track width
600 mm
Max. Reach horizontal
11.29 m
Dredging depth
7.73 m
Tear-out force
233 kN
Bucket width
1.55 m
Model series
DX
Engine manuf.
Doosan
Engine type
DE12TIS
Engine power
218 kW
Displacement
11.1 l
Revolutions at max torque
1300 rpm
Max. torque
1245 Nm
No. of cylinders
6
Cylinder bore x stroke
123 x 155 mm
Emission level
T2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX420LCA FAQ

When was the Doosan DX420LCA manufactured?

The Doosan DX420LCA was manufactured from 2019 to 2021.

How much does the Doosan DX420LCA weigh?

The Doosan DX420LCA weighs 41 tons.

What are the transport dimensions of the Doosan DX420LCA crawler excavator?

The Doosan DX420LCA has a transport length of 11 meters, a transport width of 3 meters, and a transport height of 3 meters.

What is the track width of the Doosan DX420LCA's undercarriage?

The Doosan DX420LCA has a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX420LCA?

The Doosan DX420LCA has a dredging depth of 7.73 meters and a maximum horizontal reach of 11.29 meters.

What is the tear-out force of the Doosan DX420LCA?

The Doosan DX420LCA has a tear-out force of 233 kN.

What are the bucket specifications of the Doosan DX420LCA excavator?

The Doosan DX420LCA excavator has a bucket capacity of 1.9 cubic meters and a bucket width of 1.55 meters.

How much is a Doosan DX420LCA Crawler excavator (2019u20132021) worth?

The residual value of the Doosan DX420LCA depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
