DX350LC-5K Doosan excavator specs & Dimensions (2021 - 2023)

Doosan DX350LC-5K is a Crawler Excavator manufactured since 2021. It has a weight of 36.2 tons and a track width of 600 mm. The tr…

Doosan DX350LC-5K is a Crawler Excavator manufactured since 2021. It has a weight of 36.2 tons and a track width of 600 mm. The transport dimensions are 11.405 meters in length, 3.28 meters in width, and 3.64 meters in height. The excavator features a tear-out force of 244 kN, a dredging depth of 6.935 meters, and a maximum horizontal reach of 10.59 meters. The bucket width is 1.78 meters, with a capacity ranging from 1.2 m³ to 2.01 m³. It is equipped with air conditioning.

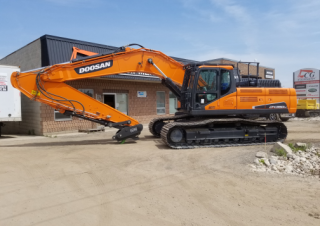

Crawler Excavators Doosan DX350LC-5K
Crawler Excavators Doosan DX350LC-5K
Crawler Excavators Doosan DX350LC-5K
Crawler Excavators Doosan DX350LC-5K

Technical specs - DX350LC-5K Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.2 t
Transport length
11.405 m
Transport width
3.28 m
Transport height
3.64 m
Bucket capacity
2.01 m³
Bucket capacity min.
1.2 m³
Bucket capacity max.
2.01 m³
Track width
600 mm
Max. Reach horizontal
10.59 m
Dredging depth
6.935 m
Tear-out force
244 kN
Bucket width
1.78 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL08P
Engine power
213 kW
Displacement
7.64 l
Max. torque
1275 Nm
No. of cylinders
4
Cylinder bore x stroke
108x139 mm
Emission level
Tier 3

More technical details, like: undercarriage, boom, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX350LC-5K FAQ

When was the Doosan DX350LC-5K manufactured?

The Doosan DX350LC-5K was manufactured from 2021 to 2023.

How much does the Doosan DX350LC-5K weigh?

The Doosan DX350LC-5K weighs 36.2 tons.

What are the transport dimensions of the Doosan DX350LC-5K crawler excavator?

The Doosan DX350LC-5K has a transport length of 11.41 meters, a transport width of 3.28 meters, and a transport height of 3.64 meters.

What is the track width of the Doosan DX350LC-5K's undercarriage?

The Doosan DX350LC-5K has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Doosan DX350LC-5K?

The Doosan DX350LC-5K has a dredging depth of 6.935 meters and a maximum horizontal reach of 10.59 meters.

What is the tear-out force of the Doosan DX350LC-5K?

The Doosan DX350LC-5K has a tear-out force of 244 kN.

What are the bucket specifications of the Doosan DX350LC-5K crawler excavator?

The Doosan DX350LC-5K crawler excavator has a bucket capacity ranging from 1.2 to 2.01 cubic meters, with a bucket width of 1.78 meters.
