DX350LC Doosan excavator specs & Dimensions (2021 - 2023)

Doosan DX350LC is a Crawler Excavator manufactured since 2021. It has a weight of 35.2 t and a track width of 600 mm. The transpor…

Doosan DX350LC is a Crawler Excavator manufactured since 2021. It has a weight of 35.2 t and a track width of 600 mm. The transport dimensions are 11.28 m in length, 3.48 m in width, and 3.36 m in height. The excavator features a tear-out force of 240 kN, a dredging depth of 7.533 m, and a maximum horizontal reach of 11.168 m. The bucket width is 1.668 m, with a capacity ranging from 1.25 m³ to 1.83 m³. It is equipped with air conditioning.

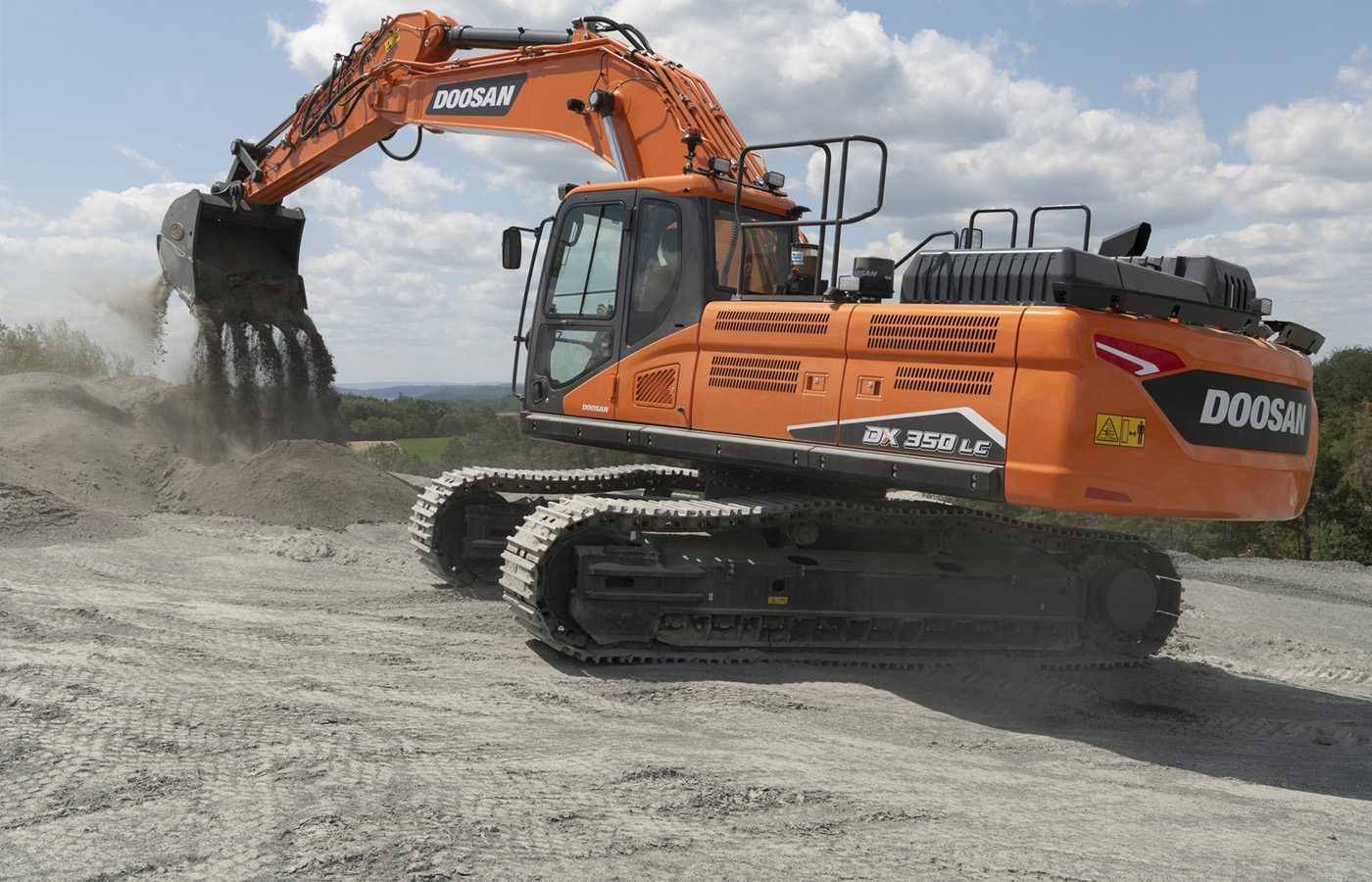

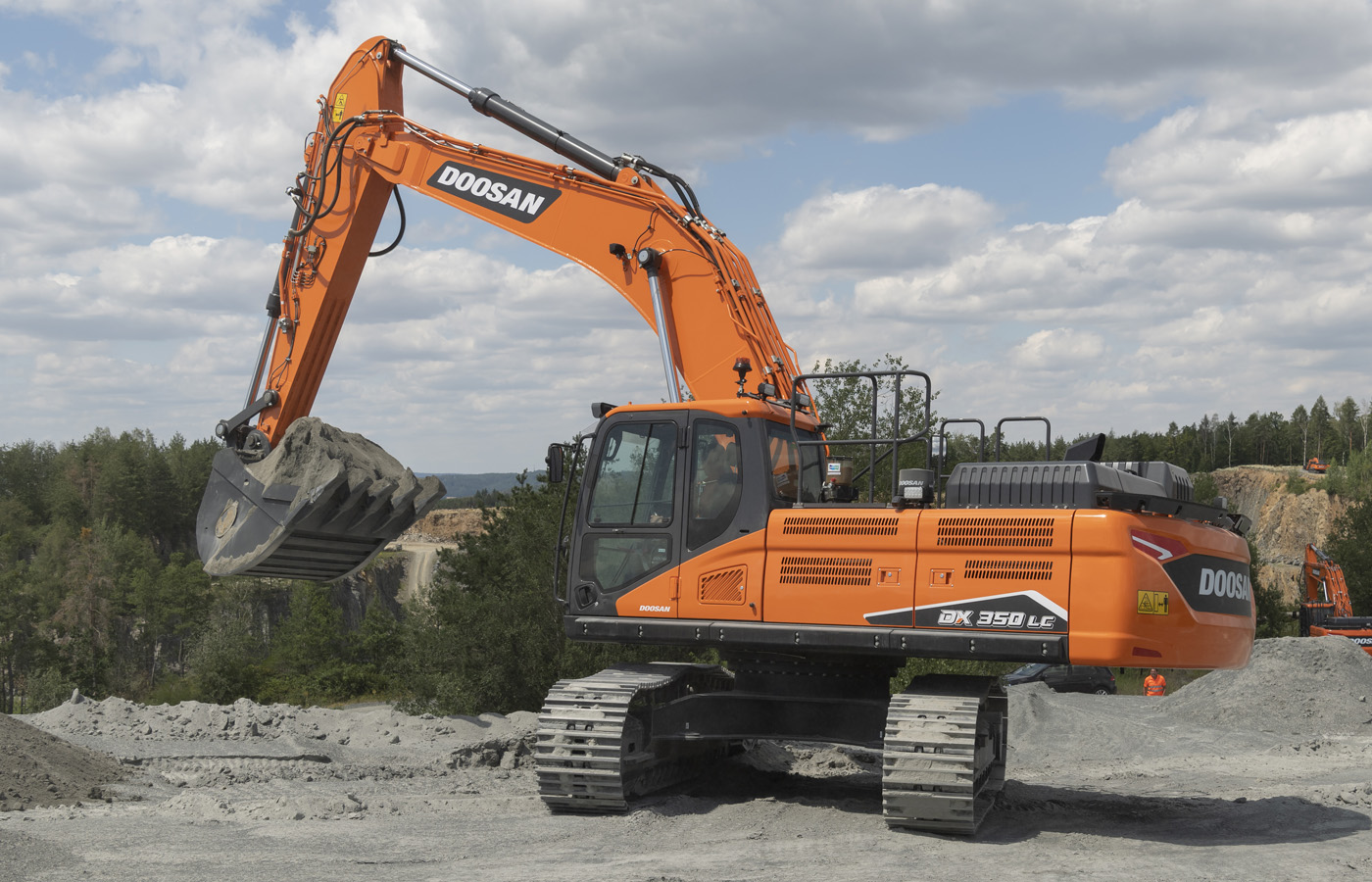

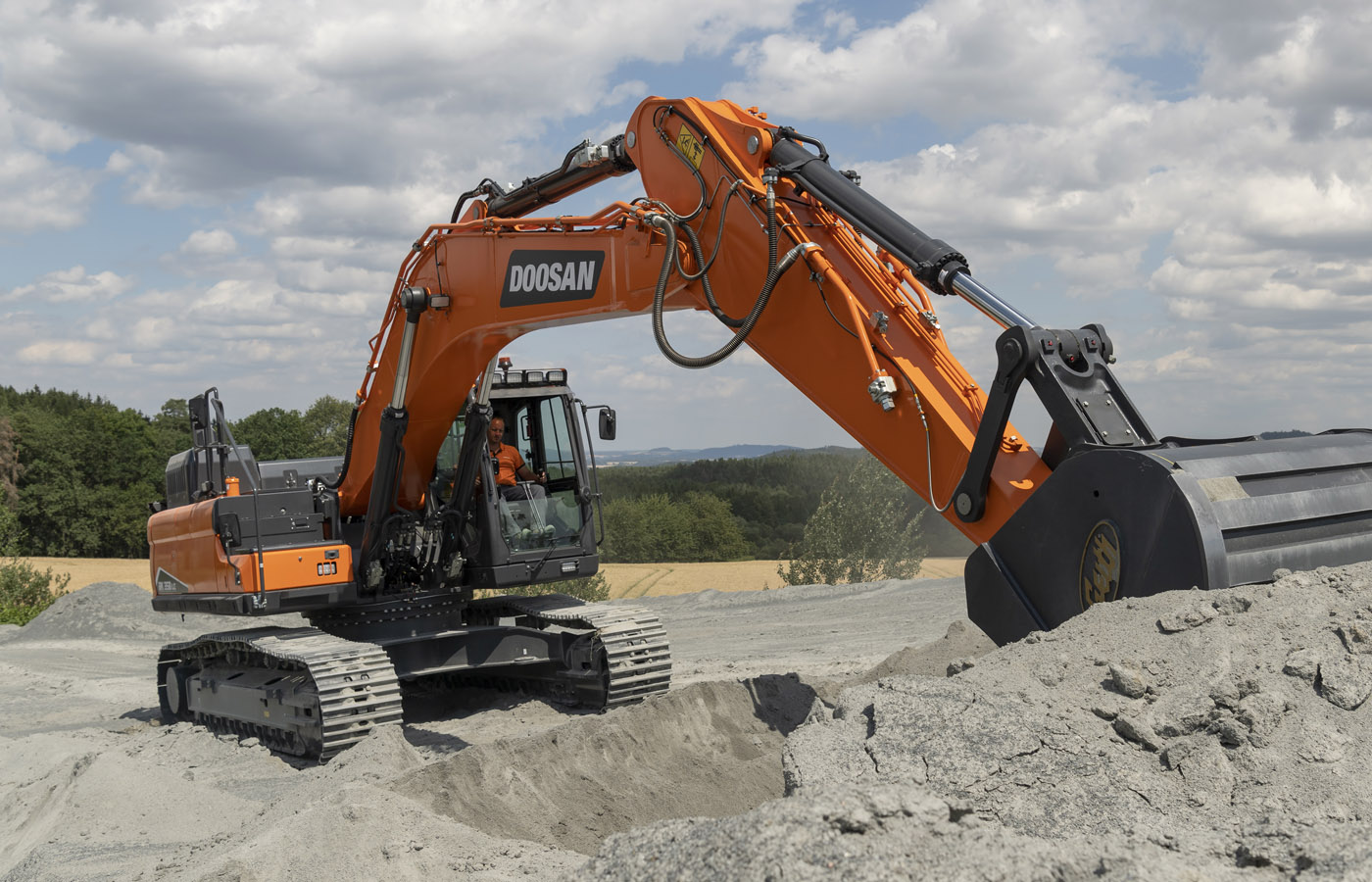

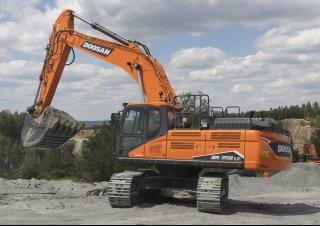

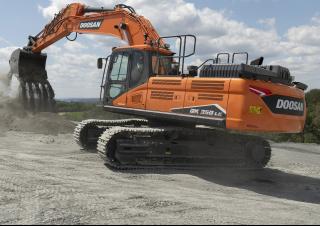

Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC
Crawler Excavators Doosan DX350LC

Technical specs - DX350LC Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.2 t
Transport length
11.28 m
Transport width
3.48 m
Transport height
3.36 m
Bucket capacity
1.83 m³
Bucket capacity min.
1.25 m³
Bucket capacity max.
1.83 m³
Track width
600 mm
Max. Reach horizontal
11.168 m
Dredging depth
7.533 m
Tear-out force
240 kN
Bucket width
1.668 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL08
Engine power
202 kW
Displacement
7.64 l
Revolutions at max torque
1300 rpm
Max. torque
1128 Nm
No. of cylinders
6
Cylinder bore x stroke
108x139 mm
Emission level
Tier 3

More technical details, like: undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX350LC FAQ

When was the Doosan DX350LC manufactured?

The Doosan DX350LC was manufactured from 2021 to 2023.

How much does the Doosan DX350LC weigh?

The Doosan DX350LC weighs 35.2 tons.

What are the transport dimensions of the Doosan DX350LC?

The Doosan DX350LC has a transport length of 11.28 meters, a transport width of 3.48 meters, and a transport height of 3.36 meters.

What is the track width of the Doosan DX350LC's undercarriage?

The Doosan DX350LC has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Doosan DX350LC?

The Doosan DX350LC has a dredging depth of 7.533 meters and a maximum horizontal reach of 11.168 meters.

What is the tear-out force of the Doosan DX350LC?

The Doosan DX350LC has a tear-out force of 240 kN.

What are the bucket specifications of the Doosan DX350LC crawler excavator?

The Doosan DX350LC crawler excavator has a bucket capacity ranging from 1.25 to 1.83 cubic meters, with a bucket width of 1.668 meters.

How much is a Doosan DX350LC Crawler excavator (2021u20132023) worth?

The residual value of the Doosan DX350LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
