DX340LC Doosan excavator specs & Dimensions (2019 - 2023)

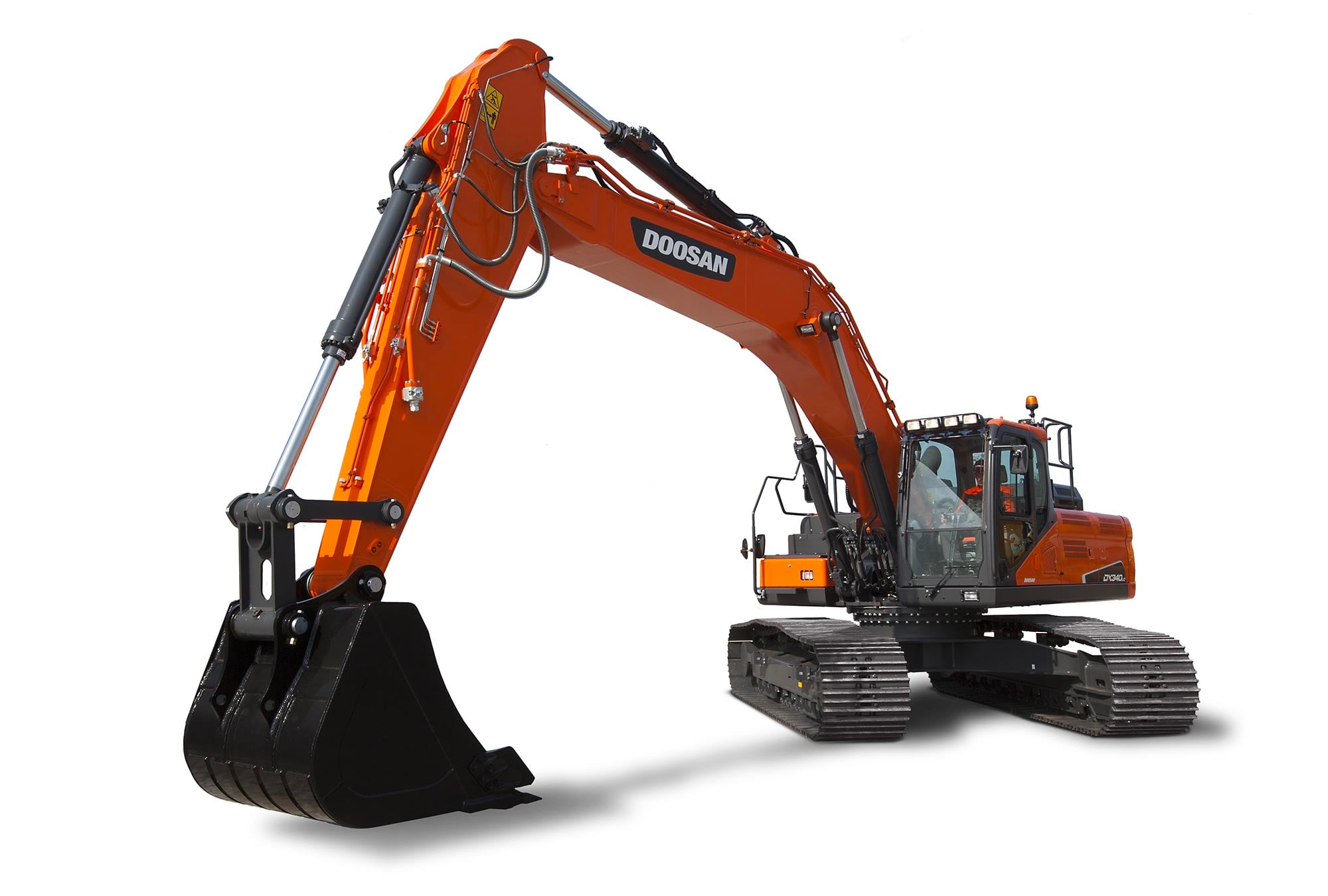

Doosan DX340LC is a Crawler Excavator manufactured since 2019. It has a weight of 34 tons and a track width of 600 mm. The transpo…

Doosan DX340LC is a Crawler Excavator manufactured since 2019. It has a weight of 34 tons and a track width of 600 mm. The transport dimensions are 11 meters in length, 3 meters in width, and 3 meters in height. The excavator features a tear-out force of 214 kN, a dredging depth of 7 meters, and a maximum horizontal reach of 10 meters. The bucket width is 1 meter with a capacity of 1 cubic meter. It is equipped with air conditioning.

Crawler Excavators Doosan DX340LC

Technical specs - DX340LC Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.4 t
Transport length
11.28 m
Transport width
3.28 m
Transport height
3.36 m
Bucket capacity
1.49 m³
Track width
600 mm
Max. Reach horizontal
10.98 m
Dredging depth
7.53 m
Tear-out force
214 kN
Bucket width
1.65 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL08
Engine power
191 kW
Displacement
7.64 l
Revolutions at max torque
1300 rpm
Max. torque
1177 Nm
No. of cylinders
6
Cylinder bore x stroke
108 x 139 mm
Emission level
T3

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX340LC FAQ

When was the Doosan DX340LC manufactured?

The Doosan DX340LC was manufactured from 2019 to 2023.

How much does the Doosan DX340LC weigh?

The Doosan DX340LC weighs 34.4 tons.

What are the transport dimensions of the Doosan DX340LC crawler excavator?

The Doosan DX340LC has a transport length of 11.28 meters, a transport width of 3.28 meters, and a transport height of 3.36 meters.

What is the track width of the Doosan DX340LC's undercarriage?

The Doosan DX340LC has a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX340LC?

The Doosan DX340LC has a dredging depth of 7.53 meters and a maximum horizontal reach of 10.98 meters.

What is the tear-out force of the Doosan DX340LC?

The Doosan DX340LC has a tear-out force of 214 kN.

What are the specifications of the primary work tool bucket on the Doosan DX340LC?

The Doosan DX340LC has a bucket with a capacity of 1.49 cubic meters and a width of 1.65 meters.
