DX350LCR-7 Develon excavator specs & Dimensions (2024 - 2026)

Weight: 36.152t – Transport length: 9.975m – Transport width: 3.6m – Transport height: 3.55m – Bucket capacity: 1.27m³ – Undercarr…

Weight: 36.152t – Transport length: 9.975m – Transport width: 3.6m – Transport height: 3.55m – Bucket capacity: 1.27m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Develon DX350LCR-7 excavator manufactured between 2024 - 2026. Get more in-depth insight with Develon DX350LCR-7 digger specifications. See information, like: Weight: 36.152t – Transport length: 9.975m – Transport width: 3.6m – Transport height: 3.55m – Bucket capacity: 1.27m³ – Undercarriage: LC and more.

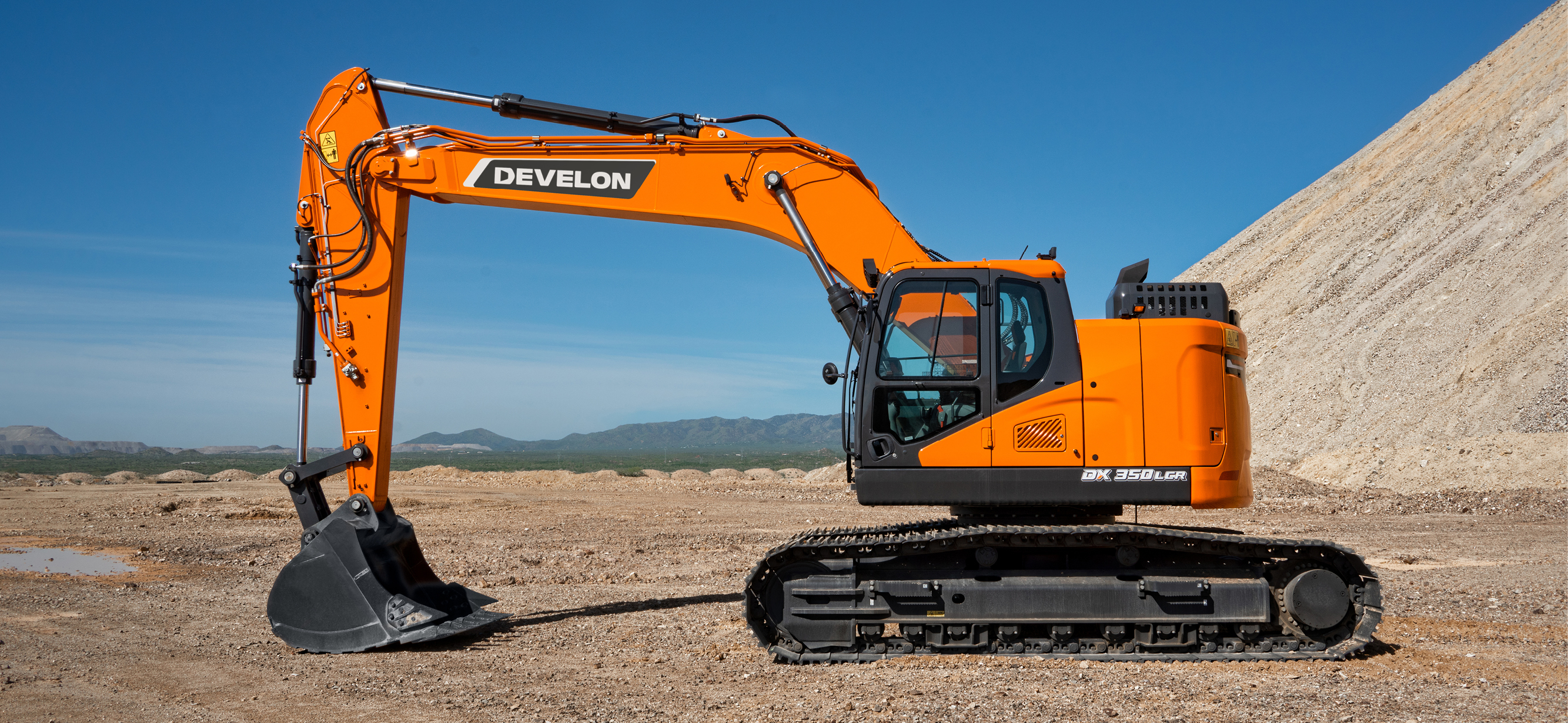

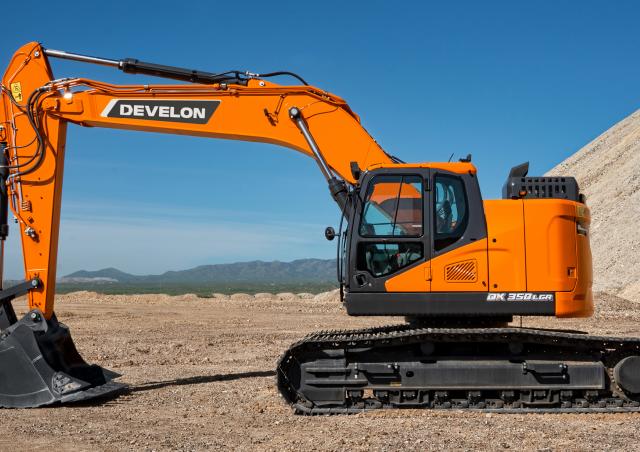

Crawler Excavators Develon DX350LCR-7

Visit Develon live at

Technical specs - DX350LCR-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.152 t
Transport length
9.975 m
Transport width
3.6 m
Transport height
3.55 m
Bucket capacity
1.27 m³
Undercarriage
LC
Track width
850 mm
Boom
MB
Max. Reach horizontal
10.62 m
Dredging depth
6.97 m
Model series
DX
Engine manuf.
Develon
Engine type
DL08-LEE04
Engine power
202 kW
Displacement
7.6 l
Revolutions at max torque
1300 rpm
Max. torque
1275 Nm
No. of cylinders
6
Cylinder bore x stroke
108x139 mm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
