H 65 Demag excavator specs & Dimensions (1987 - 1996)

Demag H 65 is a crawler excavator manufactured from 1987 to 1996, with a weight of 66.3 tons. It features a track width of 500 mm,…

Demag H 65 is a crawler excavator manufactured from 1987 to 1996, with a weight of 66.3 tons. It features a track width of 500 mm, a transport length of 6.61 meters, a transport width of 4.11 meters, and a transport height of 4.5 meters.

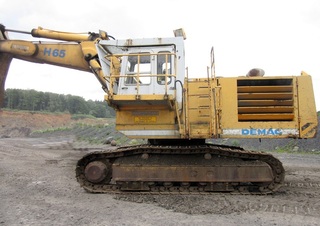

Crawler Excavators Demag H 65

Technical specs - H 65 Demag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
66.3 t
Transport length
6.61 m
Transport width
4.11 m
Transport height
4.5 m
Bucket capacity
4.4 m³
Track width
500 mm
Model series
H
Engine manuf.
Caterpillar
Engine type
3406 DITA
Engine power
298 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Demag H 65 FAQ

When was the Demag H 65 manufactured?

The Demag H 65 was manufactured from 1987 to 1996.

How much does the Demag H 65 weigh?

The Demag H 65 weighs 66.3 tons.

What are the transport dimensions of the Demag H 65 crawler excavator?

The Demag H 65 crawler excavator has a transport length of 6.61 meters, a transport width of 4.11 meters, and a transport height of 4.5 meters.

What is the track width of the Demag H 65's undercarriage?

The Demag H 65 has a track width of 500 mm.

What is the bucket capacity of the Demag H 65 crawler excavator?

The Demag H 65 crawler excavator has a bucket capacity of 4.4 cubic meters.

How much is a Demag H 65 Crawler excavator (1987u20131996) worth?

The residual value of the Demag H 65 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
