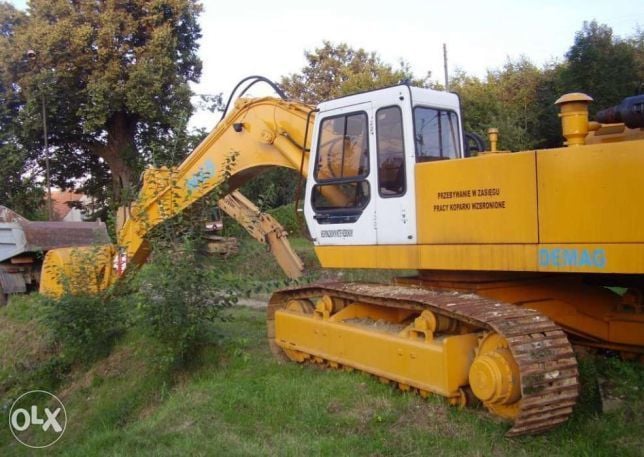

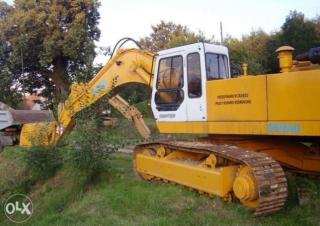

H 45 Demag excavator specs & Dimensions (1994 - 1995)

Demag H 45 is a crawler excavator manufactured from 1994 to 1995, with a weight of 45.5 tons. It features a track width of 600 mm,…

Demag H 45 is a crawler excavator manufactured from 1994 to 1995, with a weight of 45.5 tons. It features a track width of 600 mm, a transport length of 5.6 meters, a transport width of 3.45 meters, and a transport height of 3.4 meters.

Crawler Excavators Demag H 45

Technical specs - H 45 Demag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.5 t
Transport length
5.6 m
Transport width
3.45 m
Transport height
3.4 m
Bucket capacity
2.5 m³
Track width
600 mm
Model series
H
Engine manuf.
Cummins
Engine type
LTA10-C290
Engine power
205 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Demag H 45 FAQ

When was the Demag H 45 manufactured?

The Demag H 45 was manufactured from 1994 to 1995.

How much does the Demag H 45 weigh?

The Demag H 45 weighs 45.5 tons.

What are the transport dimensions of the Demag H 45 crawler excavator?

The Demag H 45 crawler excavator has a transport length of 5.6 meters, a transport width of 3.45 meters, and a transport height of 3.4 meters.

What is the track width of the Demag H 45 crawler excavator?

The Demag H 45 crawler excavator has a track width of 600 mm.

What is the bucket capacity of the Demag H 45 crawler excavator?

The Demag H 45 crawler excavator has a bucket capacity of 2.5 cubic meters.

How much is a Demag H 45 Crawler excavator (1994u20131995) worth?

The residual value of the Demag H 45 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
