6060 AC FS Caterpillar excavator specs & Dimensions (2019 - 2026)

Caterpillar 6060 AC FS is a crawler excavator manufactured since 2019, with a weight of 549 tons. It features a track width of 140…

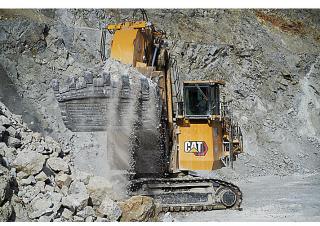

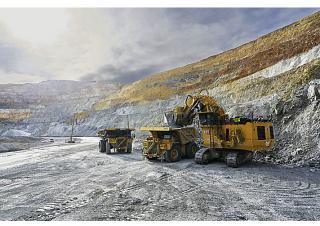

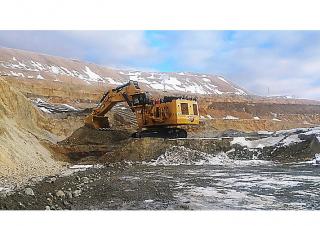

Caterpillar 6060 AC FS is a crawler excavator manufactured since 2019, with a weight of 549 tons. It features a track width of 1400 mm, a transport length of 9.23 meters, a transport width of 7 meters, and a transport height of 8.73 meters. The machine has a dredging depth of 2.7 meters, a maximum horizontal reach of 16.4 meters, and a bucket capacity of 34 cubic meters.

Crawler Excavators Caterpillar 6060 AC FS

6060 AC FS

Years of manufacture: 2019—2026

Data sheet
Spare parts
Transport
News

Technical specs - 6060 AC FS Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 549 t

Transport length: 9.23 m

Transport width: 7 m

Transport height: 8.73 m

Bucket capacity: 34 m³

Track width: 1400 mm

Boom: MB

Max. Reach horizontal: 16.4 m

Dredging depth: 2.7 m

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, tear-out force, bucket width, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

6060 AC FS Caterpillar Specification for Europe (EN)

Caterpillar 6060 AC FS FAQ

When was the Caterpillar 6060 AC FS manufactured?

The Caterpillar 6060 AC FS was first produced in 2019.

How much does the Caterpillar 6060 AC FS weigh?

The Caterpillar 6060 AC FS weighs 549 tons.

What are the transport dimensions of the Caterpillar 6060 AC FS?

The Caterpillar 6060 AC FS has a transport length of 9.23 meters, a transport width of 7 meters, and a transport height of 8.73 meters.

What is the track width of the Caterpillar 6060 AC FS's undercarriage?

The Caterpillar 6060 AC FS has a track width of 1400 mm.

What are the excavation performance specifications of the Caterpillar 6060 AC FS?

The Caterpillar 6060 AC FS has a dredging depth of 2.7 meters, a maximum horizontal reach of 16.4 meters, and is equipped with a monobloc boom.

What is the bucket capacity of the Caterpillar 6060 AC FS?

The bucket capacity of the Caterpillar 6060 AC FS is 34 cubic meters.

How much is a Caterpillar 6060 AC FS Crawler excavator (2019u20132025) worth?

The residual value of the Caterpillar 6060 AC FS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
