6040F S Caterpillar excavator specs & Dimensions (2014 - 2026)

Caterpillar 6040F S is a crawler excavator manufactured since 2014. It has a weight of 407.3 tons and a track width of 1200 mm. Th…

Caterpillar 6040F S is a crawler excavator manufactured since 2014. It has a weight of 407.3 tons and a track width of 1200 mm. The transport width is 8.05 meters, and the transport height is 7.92 meters. The excavator features a tear-out force of 1200 kN, a dredging depth of 2.6 meters, and a maximum horizontal reach of 15.4 meters. The bucket width is 4.22 meters, with a bucket capacity of 17.1 cubic meters.

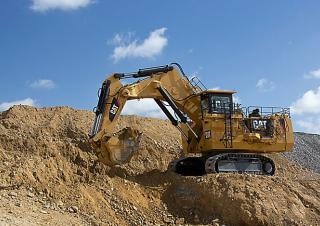

Crawler Excavators Caterpillar 6040F S

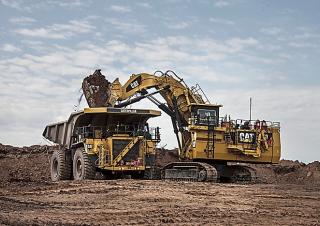

Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S
Crawler Excavators Caterpillar 6040F S

Technical specs - 6040F S Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
407.3 t
Transport width
8.05 m
Transport height
7.92 m
Bucket capacity
17.1 m³
Track width
1200 mm
Max. Reach horizontal
15.4 m
Dredging depth
2.6 m
Tear-out force
1200 kN
Bucket width
4.22 m
Engine manuf.
Caterpillar
Engine type
C32
Engine power
1516 kW
Displacement
32.1 l
No. of cylinders
12
Cylinder bore x stroke
145x162 mm
Emission level
Tier 2

More technical details, like: transport length, bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 6040F S FAQ

When was the Caterpillar 6040F S manufactured?

The Caterpillar 6040F S was first produced in 2014.

How much does the Caterpillar 6040F S weigh?

The Caterpillar 6040F S weighs 407.3 tons.

What are the transport dimensions of the Caterpillar 6040F S?

The Caterpillar 6040F S has a transport width of 8.05 meters and a transport height of 7.92 meters.

What is the track width of the Caterpillar 6040F S's undercarriage?

The Caterpillar 6040F S has a track width of 1200 mm.

What are the excavation specifications of the Caterpillar 6040F S?

The Caterpillar 6040F S has a dredging depth of 2.6 meters and a maximum horizontal reach of 15.4 meters.

What are the power ratings of the Caterpillar 6040F S?

The source data does not provide power ratings for the Caterpillar 6040F S.

What are the specifications of the primary work tool on the Caterpillar 6040F S?

The primary work tool of the Caterpillar 6040F S has a bucket capacity of 17.1 cubic meters and a bucket width of 4.22 meters.

How much is a Caterpillar 6040F S Crawler excavator (2014u20132025) worth?

The residual value of the Caterpillar 6040F S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
