365B Caterpillar excavator specs & Dimensions (2000 - 2007)

Caterpillar 365B is a crawler excavator manufactured from 2000 to 2007. It has a weight of 67.63 tons and a track width of 600 mm.…

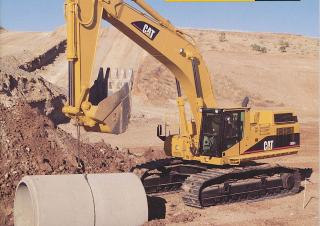

Caterpillar 365B is a crawler excavator manufactured from 2000 to 2007. It has a weight of 67.63 tons and a track width of 600 mm. The transport dimensions are 13.15 meters in length, 3.5 meters in width, and 5.02 meters in height. The dredging depth is 9.47 meters, and the maximum horizontal reach is 14.04 meters.

Crawler Excavators Caterpillar 365B

Technical specs - 365B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
67.63 t
Transport length
13.15 m
Transport width
3.5 m
Transport height
5.02 m
Track width
600 mm
Max. Reach horizontal
14.04 m
Dredging depth
9.47 m
Engine manuf.
Caterpillar
Engine type
3196
Engine power
289 kW
Displacement
12 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 365B FAQ

When was the Caterpillar 365B manufactured?

The Caterpillar 365B was manufactured from 2000 to 2007.

How much does the Caterpillar 365B weigh?

The Caterpillar 365B weighs 67.63 tons.

What are the transport dimensions of the Caterpillar 365B?

The Caterpillar 365B has a transport length of 13.15 meters, a transport width of 3.5 meters, and a transport height of 5.02 meters.

What is the track width of the Caterpillar 365B's undercarriage?

The Caterpillar 365B has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the Caterpillar 365B?

The Caterpillar 365B has a dredging depth of 9.47 meters and a maximum horizontal reach of 14.04 meters.

How much is a Caterpillar 365B Crawler excavator (2000u20132007) worth?

The residual value of the Caterpillar 365B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
