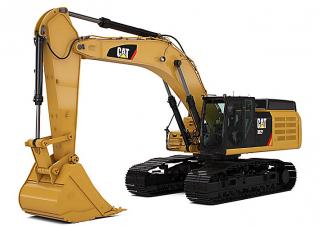

352F Caterpillar excavator specs & Dimensions (2015 - 2020)

Caterpillar 352F is a Crawler Excavator manufactured from 2015 to 2020. It has a weight of 50.8 tons and a track width of 600 mm. …

Caterpillar 352F is a Crawler Excavator manufactured from 2015 to 2020. It has a weight of 50.8 tons and a track width of 600 mm. The transport dimensions are 12 meters in length, 3.68 meters in width, and 3.69 meters in height. The machine features a tear-out force of 268 kN, a dredging depth of 7.06 meters, and a maximum horizontal reach of 11.29 meters. The bucket capacity is 3.1 cubic meters. Special equipment includes air conditioning, cabin adjustment, and track adjustment.

Crawler Excavators Caterpillar 352F

Technical specs - 352F Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
50.8 t
Transport length
11.87 m
Transport width
3 m
Transport height
3.66 m
Bucket capacity
3.1 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.29 m
Dredging depth
7.06 m
Tear-out force
268 kN
Engine manuf.
Caterpillar
Engine type
C13 Acert
Engine power
317 kW
Displacement
12.5 l
Cylinder bore x stroke
130x157 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 352F FAQ

When was the Caterpillar 352F manufactured?

The Caterpillar 352F was manufactured from 2015 to 2020.

How much does the Caterpillar 352F weigh?

The Caterpillar 352F weighs 50.8 tons.

What are the transport dimensions of the Caterpillar 352F?

The Caterpillar 352F has a transport length of 12 meters, a transport width of 3.68 meters, and a transport height of 3.69 meters.

What is the track width of the Caterpillar 352F's undercarriage?

The Caterpillar 352F has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 352F?

The Caterpillar 352F has a dredging depth of 7.06 meters, a maximum horizontal reach of 11.29 meters, and is equipped with a monobloc boom.

What are the power ratings of the Caterpillar 352F?

The source data does not provide power ratings for the Caterpillar 352F.

What is the bucket capacity of the Caterpillar 352F?

The bucket capacity of the Caterpillar 352F is 3.1 cubic meters.

How much is a Caterpillar 352F Crawler excavator (2015u20132020) worth?

The residual value of the Caterpillar 352F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
