350 Caterpillar excavator specs & Dimensions (2022 - 2026)

Caterpillar 350 is a Crawler Excavator manufactured since 2022. It has a weight of 47.7 tons and a track width of 600 mm. The tran…

Caterpillar 350 is a Crawler Excavator manufactured since 2022. It has a weight of 47.7 tons and a track width of 600 mm. The transport dimensions are 11.95 meters in length, 3.34 meters in width, and 3.26 meters in height. The machine offers a tear-out force of 268 kN, a dredging depth of 8.21 meters, and a maximum horizontal reach of 12.15 meters. The bucket capacity is 3.08 cubic meters.

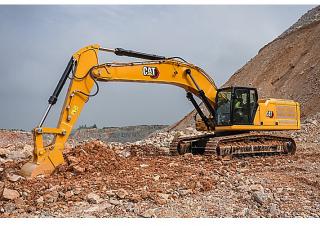

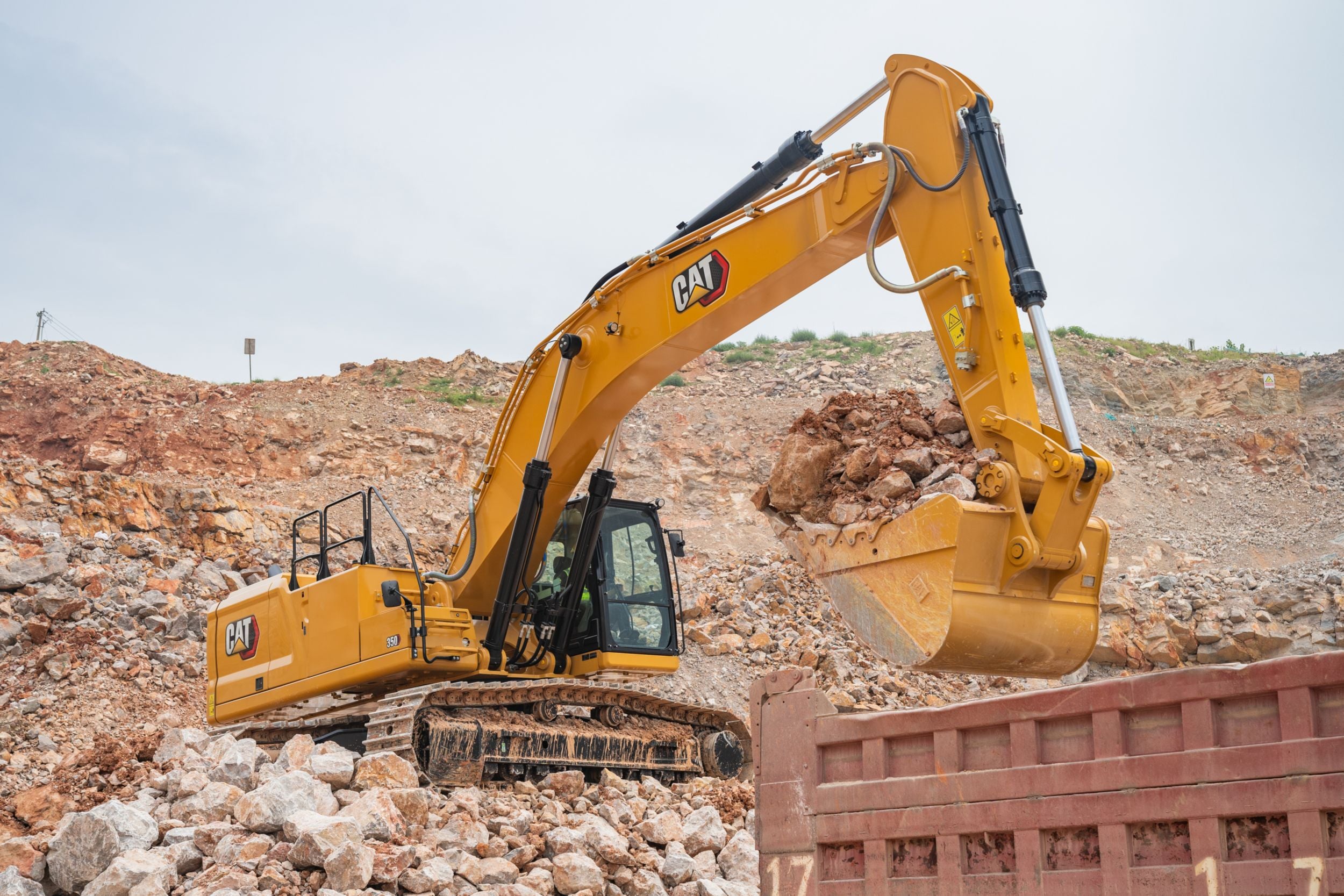

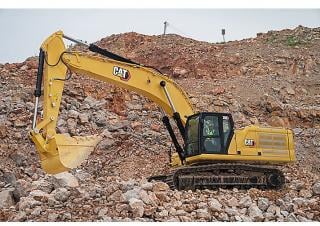

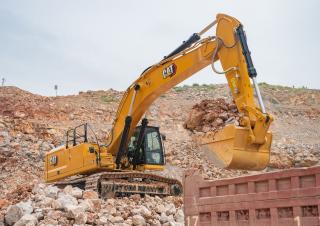

Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350
Crawler Excavators Caterpillar 350

Technical specs - 350 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.7 t
Transport length
11.95 m
Transport width
3.34 m
Transport height
3.26 m
Bucket capacity
3.08 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
12.15 m
Dredging depth
8.21 m
Tear-out force
268 kN
Engine manuf.
Caterpillar
Engine type
C9.3 B
Engine power
308 kW
Displacement
9.3 l
Cylinder bore x stroke
115x149 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 350 FAQ

When was the Caterpillar 350 manufactured?

The Caterpillar 350 was first produced in 2022.

How much does the Caterpillar 350 weigh?

The Caterpillar 350 weighs 47.7 tons.

What are the transport dimensions of the Caterpillar 350 crawler excavator?

The Caterpillar 350 crawler excavator has a transport length of 11.95 meters, a transport width of 3.34 meters, and a transport height of 3.26 meters.

What is the track width of the Caterpillar 350's undercarriage?

The Caterpillar 350 has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 350?

The Caterpillar 350 has a dredging depth of 8.21 meters, a maximum horizontal reach of 12.15 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 350?

The Caterpillar 350 has a tear-out force of 268 kN. No power rating data is provided.

What is the bucket capacity of the Caterpillar 350 crawler excavator?

The Caterpillar 350 crawler excavator has a bucket capacity of 3.08 cubic meters.

How much is a Caterpillar 350 Crawler excavator (2022u20132025) worth?

The residual value of the Caterpillar 350 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
