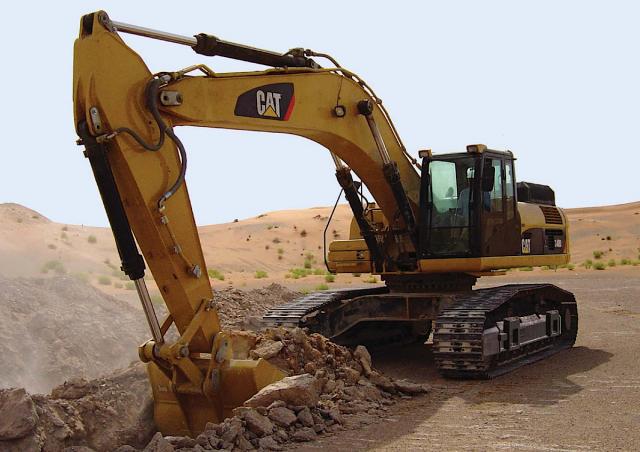

340D Caterpillar excavator specs & Dimensions (2011 - 2026)

Caterpillar 340D is a Crawler Excavator manufactured since 2011. It has a weight of 38.58 tons and a track width of 700 mm. The tr…

Caterpillar 340D is a Crawler Excavator manufactured since 2011. It has a weight of 38.58 tons and a track width of 700 mm. The transport dimensions are 6.92 meters in length, 3.52 meters in width, and 3.42 meters in height. The dredging depth is 7.96 meters, and the maximum horizontal reach is 10.78 meters.

Crawler Excavators Caterpillar 340D

Technical specs - 340D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.58 t
Transport length
6.92 m
Transport width
3.52 m
Transport height
3.42 m
Track width
700 mm
Max. Reach horizontal
10.78 m
Dredging depth
7.96 m
Engine manuf.
Caterpillar
Engine type
C9 Acert
Engine power
209 kW
Displacement
8.8 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 340D FAQ

When was the Caterpillar 340D manufactured?

The Caterpillar 340D was first produced in 2011.

How much does the Caterpillar 340D weigh?

The Caterpillar 340D weighs 38.58 tons.

What are the transport dimensions of the Caterpillar 340D crawler excavator?

The Caterpillar 340D has a transport length of 6.92 meters, a transport width of 3.52 meters, and a transport height of 3.42 meters.

What is the track width of the Caterpillar 340D's undercarriage?

The Caterpillar 340D has a track width of 700 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 340D?

The Caterpillar 340D has a dredging depth of 7.96 meters and a maximum horizontal reach of 10.78 meters.
