340 Caterpillar excavator specs & Dimensions (2020 - 2026)

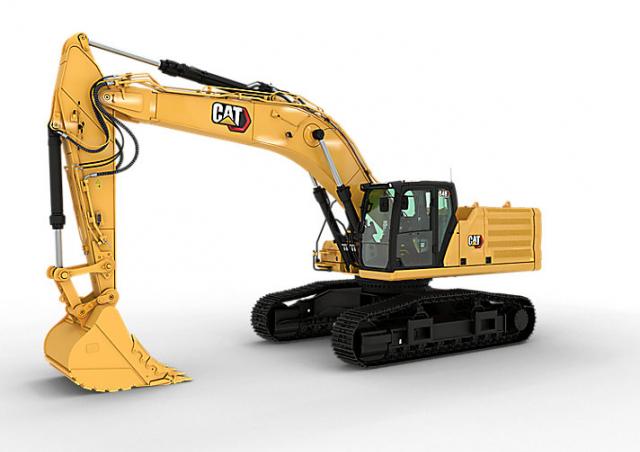

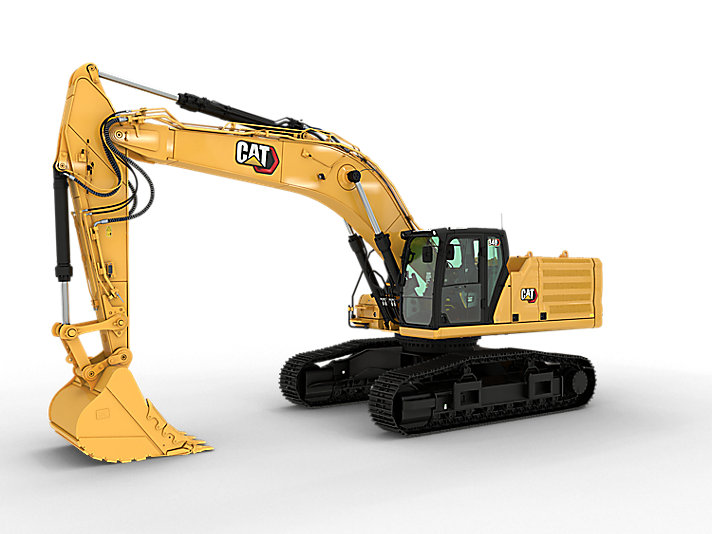

Caterpillar 340 is a Crawler Excavator manufactured since 2020, with a weight of 41 tons. It features a track width of 600 mm, a t…

Caterpillar 340 is a Crawler Excavator manufactured since 2020, with a weight of 41 tons. It features a track width of 600 mm, a transport length of 11.09 meters, a transport width of 3.67 meters, and a transport height of 3.69 meters. The excavator has a tear-out force of 210 kN, a dredging depth of 6.86 meters, and a maximum horizontal reach of 10.67 meters. The bucket width is 1.8 meters, and the bucket capacity is 2.28 cubic meters. Special equipment includes air conditioning, cabin adjustment, quick hitch hydraulic, and track adjustment.

Crawler Excavators Caterpillar 340

Technical specs - 340 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
41 t
Transport length
11.09 m
Transport width
3.67 m
Transport height
3.69 m
Bucket capacity
2.28 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.67 m
Dredging depth
6.86 m
Tear-out force
210 kN
Bucket width
1.8 m
Engine manuf.
Caterpillar
Engine type
C9.3B Acert
Engine power
234 kW
Displacement
9.3 l
Cylinder bore x stroke
115x149 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 340 FAQ

When was the Caterpillar 340 manufactured?

The Caterpillar 340 was first produced in 2020.

How much does the Caterpillar 340 crawler excavator weigh?

The Caterpillar 340 crawler excavator weighs 41 tons.

What are the transport dimensions of the Caterpillar 340 crawler excavator?

The Caterpillar 340 crawler excavator has a transport length of 11.09 meters, a transport width of 3.67 meters, and a transport height of 3.69 meters.

What is the track width of the Caterpillar 340's undercarriage?

The Caterpillar 340 has a track width of 600 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 340?

The Caterpillar 340 has a dredging depth of 6.86 meters, a maximum horizontal reach of 10.67 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 340?

The Caterpillar 340 has a tear-out force of 210 kN.

What are the specifications of the primary work tool on the Caterpillar 340?

The primary work tool of the Caterpillar 340 has a bucket capacity of 2.28 cubic meters and a bucket width of 1.8 meters.

How much is a Caterpillar 340 Crawler excavator (2020u20132025) worth?

The residual value of the Caterpillar 340 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
