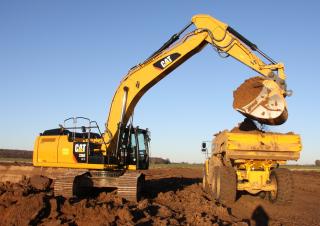

    Caterpillar 336E LN excavator specs (2011 - 2015)

    Rate this machine now!

    Manufactured by Caterpillar, this is the 336 E LN crawler excavator. Find and download detailed specs and data sheets for this mac... Read more

    Manufactured by Caterpillar, this is the 336 E LN crawler excavator. Find and download detailed specs and data sheets for this machine here.

    The Caterpillar 336 E LN is a 35.894t machine with Caterpillar engine which powers this model with up to 236kW or 316 horse power. The 336 E LN is categorised in the biggest machine segment in the crawler excavators category. The model's dimensions are 12.16m x 3.19m x 3.51m. The bucket of 336 E LN has a capacity of 1,64m³ which is average for this type of machine.

    The 336 E LN is manufactured and distributed with Aircondition, Cabin adjustment and Track adaption. It has been sold without air Material Handling Excavator, Blade and Quick hitch hydr. As of 2015. There are more detailed specifications and machine descriptions available in the original Caterpillar 336 E LN specs data sheet. Specification sheet is available for a free download in English - providing the machine descriptions and more detailed specs about this particular model.

    The production stopped in 2015, where this 336 E LN was available at a new list price between €397000 and €506000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The most commonly viewed Caterpillar models of this type on LECTURA Specs are the 325 F L, 308 E 2 CR and 326 F LN, and 35 other crawler excavators, which currently range from 7.3t up to 140t are also available. Want more detailed specifications? Download the latest Caterpillar 336 E LN specs data sheet on LECTURA Specs today!

    Technical specs - 336E LN Caterpillar


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 35.89 t
    • Transport length 12.16 m
    • Transport width 3.19 m
    • Transport height 3.51 m
    • Bucket capacity 1,64 m³
    • Track width 600 mm
    • Boom MB
    • Max. Reach horizontal 10,71 m
    • Dredging depth 7,09 m
    • Tear-out force 185,5 kN
    • Bucket width 1,35 m
    • Engine manuf. Caterpillar
    • Engine type C9.3 ATAAC
    • Engine power 236 kW
    • Displacement 9.3 l
    • Revolutions at max torque 1800 rpm

    More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    Special equipment

    • Diesel particulate filter
    • Track adjustment
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
