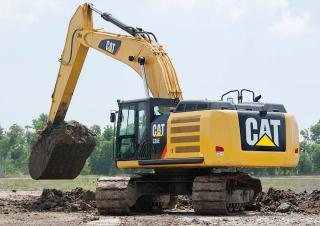

336E Caterpillar excavator specs & Dimensions (2011 - 2026)

Caterpillar 336E is a Crawler Excavator manufactured since 2011, with a weight of 36.57 tons. It features a track width of 700 mm,…

Caterpillar 336E is a Crawler Excavator manufactured since 2011, with a weight of 36.57 tons. It features a track width of 700 mm, a transport length of 11.17 meters, a transport width of 3.29 meters, and a transport height of 3.66 meters. The machine has a dredging depth of 8.19 meters and a maximum horizontal reach of 11.72 meters.

Crawler Excavators Caterpillar 336E

Technical specs - 336E Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.57 t
Transport length
11.17 m
Transport width
3.29 m
Transport height
3.66 m
Track width
700 mm
Max. Reach horizontal
11.72 m
Dredging depth
8.19 m
Engine manuf.
Caterpillar
Engine type
C9.3 Acert
Engine power
236 kW
Displacement
9.3 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 336E FAQ

When was the Caterpillar 336E manufactured?

The Caterpillar 336E was first produced in 2011.

How much does the Caterpillar 336E weigh?

The Caterpillar 336E weighs 36.57 tons.

What are the transport dimensions of the Caterpillar 336E?

The Caterpillar 336E has a transport length of 11.17 meters, a transport width of 3.29 meters, and a transport height of 3.66 meters.

What is the average fuel consumption of the Caterpillar 336E?

The Caterpillar 336E has an average fuel consumption of 25.3 liters per hour.

What is the track width of the Caterpillar 336E's undercarriage?

The Caterpillar 336E has a track width of 700 mm.

What are the excavation performance specifications of the Caterpillar 336E?

The Caterpillar 336E has a dredging depth of 8.19 meters and a maximum horizontal reach of 11.72 meters.
