336D2 XE Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 336D2 XE is a crawler excavator manufactured from 2017 to 2019. It has a weight of 36.1 tons and a track width of 600 …

Caterpillar 336D2 XE is a crawler excavator manufactured from 2017 to 2019. It has a weight of 36.1 tons and a track width of 600 mm. The transport dimensions are 11.19 meters in length, 3.19 meters in width, and 3.49 meters in height. The machine features a tear-out force of 211.1 kN, a dredging depth of 7.51 meters, and a maximum horizontal reach of 11.05 meters. The bucket width is 1.5 meters.

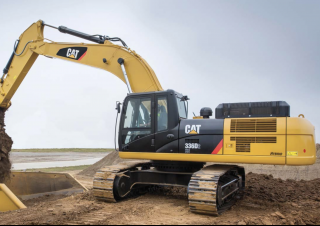

Crawler Excavators Caterpillar 336D2 XE
Crawler Excavators Caterpillar 336D2 XE
Crawler Excavators Caterpillar 336D2 XE
Crawler Excavators Caterpillar 336D2 XE

Technical specs - 336D2 XE Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.1 t
Transport length
11.19 m
Transport width
3.19 m
Transport height
3.49 m
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.05 m
Dredging depth
7.51 m
Tear-out force
211.1 kN
Bucket width
1.5 m
Engine manuf.
Caterpillar
Engine type
C9 Acert
Engine power
208 kW
Displacement
8.8 l
Cylinder bore x stroke
112x149 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 336D2 XE FAQ

When was the Caterpillar 336D2 XE manufactured?

The Caterpillar 336D2 XE was manufactured from 2017 to 2019.

How much does the Caterpillar 336D2 XE weigh?

The Caterpillar 336D2 XE weighs 36.1 tons.

What are the transport dimensions of the Caterpillar 336D2 XE?

The Caterpillar 336D2 XE has a transport length of 11.19 meters, a transport width of 3.19 meters, and a transport height of 3.49 meters.

What is the fuel consumption range of the Caterpillar 336D2 XE?

The Caterpillar 336D2 XE has a fuel consumption range of 15 to 29 liters per hour.

What are the undercarriage specifications of the Caterpillar 336D2 XE?

The Caterpillar 336D2 XE has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 336D2 XE?

The Caterpillar 336D2 XE has a dredging depth of 7.51 meters, a maximum horizontal reach of 11.05 meters, and features a monobloc boom.

What is the tear-out force, a power-related rating, of the Caterpillar 336D2 XE?

The Caterpillar 336D2 XE has a tear-out force of 211.1 kN.

What is the bucket width of the Caterpillar 336D2 XE?

The bucket width of the Caterpillar 336D2 XE is 1.5 meters.

How much is a Caterpillar 336D2 XE Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 336D2 XE depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
