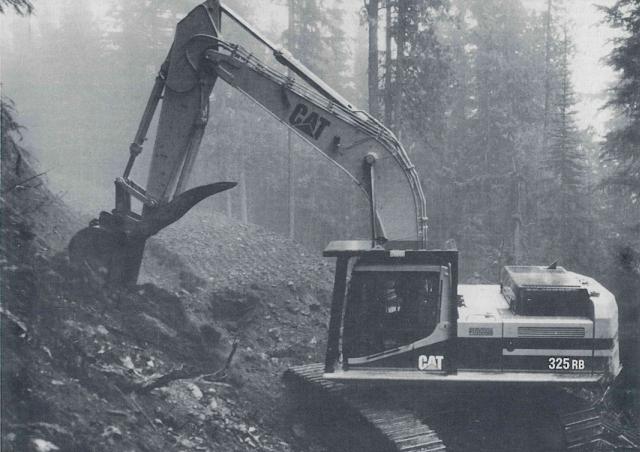

325RB Caterpillar excavator specs & Dimensions (1994 - 2026)

Caterpillar 325RB is a Crawler Excavator manufactured since 1994. It has a weight of 32.9 tons and a track width of 600 mm. The tr…

Caterpillar 325RB is a Crawler Excavator manufactured since 1994. It has a weight of 32.9 tons and a track width of 600 mm. The transport dimensions are 9.62 meters in length, 3.63 meters in width, and 3.65 meters in height. The dredging depth is 6.52 meters, and the maximum horizontal reach is 10.05 meters.

Crawler Excavators Caterpillar 325RB

Technical specs - 325RB Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
32.9 t
Transport length
9.62 m
Transport width
3.63 m
Transport height
3.65 m
Track width
600 mm
Max. Reach horizontal
10.05 m
Dredging depth
6.52 m
Engine manuf.
Caterpillar
Engine type
3116TA
Engine power
125 kW
Displacement
6.6 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 325RB FAQ

When was the Caterpillar 325RB manufactured?

The Caterpillar 325RB was first produced in 1994.

How much does the Caterpillar 325RB weigh?

The Caterpillar 325RB weighs 32.9 tons.

What are the transport dimensions of the Caterpillar 325RB?

The Caterpillar 325RB has a transport length of 9.62 meters, a transport width of 3.63 meters, and a transport height of 3.65 meters.

What is the track width of the Caterpillar 325RB's undercarriage?

The Caterpillar 325RB has a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 325RB?

The Caterpillar 325RB has a dredging depth of 6.52 meters and a maximum horizontal reach of 10.05 meters.
