318D2 L Caterpillar excavator specs & Dimensions (2017 - 2026)

Caterpillar 318D2 L is a Crawler Excavator manufactured since 2017, with a weight of 17.9 tons. It features a track width of 600 m…

Caterpillar 318D2 L is a Crawler Excavator manufactured since 2017, with a weight of 17.9 tons. It features a track width of 600 mm, a transport length of 8.54 meters, a transport width of 2.59 meters, and a transport height of 3.03 meters. The machine has a tear-out force of 111 kN, a dredging depth of 6.39 meters, and a maximum horizontal reach of 8.99 meters. The bucket width is 1.1 meters, and the bucket capacity is 0.76 cubic meters.

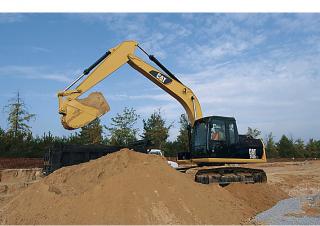

Crawler Excavators Caterpillar 318D2 L
Crawler Excavators Caterpillar 318D2 L
Crawler Excavators Caterpillar 318D2 L
Crawler Excavators Caterpillar 318D2 L
Crawler Excavators Caterpillar 318D2 L
Crawler Excavators Caterpillar 318D2 L

Technical specs - 318D2 L Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.9 t
Transport length
8.54 m
Transport width
2.59 m
Transport height
3.03 m
Bucket capacity
0.76 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.99 m
Dredging depth
6.39 m
Tear-out force
111 kN
Bucket width
1.1 m
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
84 kW
Displacement
4.4 l
Cylinder bore x stroke
105x127 mm
Emission level
U.S. EPA Tier 3 / EU IIIA

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 318D2 L FAQ

When was the Caterpillar 318D2 L manufactured?

The Caterpillar 318D2 L was first produced in 2017.

How much does the Caterpillar 318D2 L weigh?

The Caterpillar 318D2 L weighs 17.9 tons.

What are the transport dimensions of the Caterpillar 318D2 L?

The Caterpillar 318D2 L has a transport length of 8.54 meters, a transport width of 2.59 meters, and a transport height of 3.03 meters.

What is the fuel consumption of the Caterpillar 318D2 L crawler excavator?

The Caterpillar 318D2 L has a fuel consumption range of 9 to 12 liters per hour, with an average consumption of 10.5 liters per hour.

What are the undercarriage specifications of the Caterpillar 318D2 L?

The Caterpillar 318D2 L has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 318D2 L?

The Caterpillar 318D2 L has a dredging depth of 6.39 meters, a maximum horizontal reach of 8.99 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar 318D2 L?

The Caterpillar 318D2 L has a tear-out force of 111 kN.

What are the specifications of the primary work tool bucket on the Caterpillar 318D2 L?

The primary work tool bucket of the Caterpillar 318D2 L has a capacity of 0.76 cubic meters and a width of 1.1 meters.

How much is a Caterpillar 318D2 L Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 318D2 L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
