315C Caterpillar excavator specs & Dimensions (2003 - 2007)

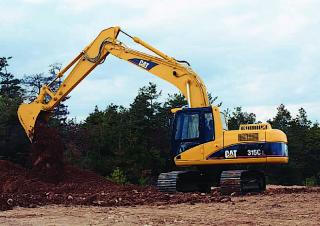

Caterpillar 315C is a Crawler Excavator manufactured from 2003 to 2007. It has a weight of 16.4 tons, a track width of 500 mm, a t…

Caterpillar 315C is a Crawler Excavator manufactured from 2003 to 2007. It has a weight of 16.4 tons, a track width of 500 mm, a transport length of 8.47 meters, a transport width of 2.49 meters, and a transport height of 2.88 meters. The dredging depth is 5.7 meters, and the maximum horizontal reach is 8.42 meters.

Crawler Excavators Caterpillar 315C

Technical specs - 315C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.4 t
Transport length
8.47 m
Transport width
2.49 m
Transport height
2.88 m
Track width
500 mm
Max. Reach horizontal
8.42 m
Dredging depth
5.7 m
Engine manuf.
Caterpillar
Engine type
3046T
Engine power
82 kW
Displacement
5 l
No. of cylinders
6
Cylinder bore x stroke
94x120 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 315C FAQ

When was the Caterpillar 315C manufactured?

The Caterpillar 315C was manufactured from 2003 to 2007.

How much does the Caterpillar 315C weigh?

The Caterpillar 315C weighs 16.4 tons.

What are the transport dimensions of the Caterpillar 315C?

The Caterpillar 315C has a transport length of 8.47 meters, a transport width of 2.49 meters, and a transport height of 2.88 meters.

What is the track width of the Caterpillar 315C's undercarriage?

The Caterpillar 315C has a track width of 500 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 315C?

The Caterpillar 315C has a dredging depth of 5.7 meters and a maximum horizontal reach of 8.42 meters.
