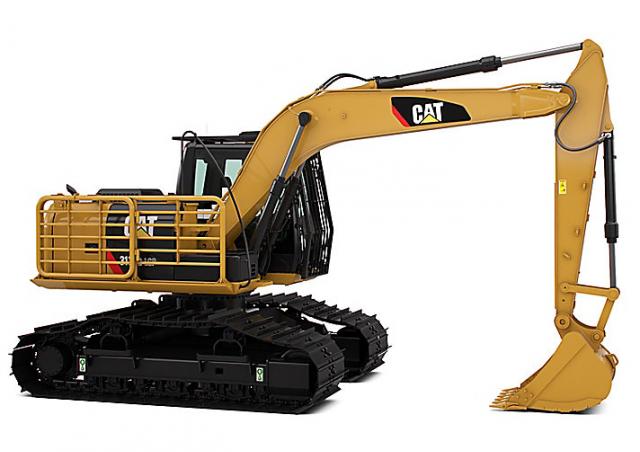

313D2 Caterpillar excavator specs & Dimensions (2017 - 2026)

Caterpillar 313D2 is a Crawler Excavator manufactured since 2017. It has a weight of 15.9 tons and a track width of 600 mm. The tr…

Caterpillar 313D2 is a Crawler Excavator manufactured since 2017. It has a weight of 15.9 tons and a track width of 600 mm. The transport dimensions are 7.6 meters in length, 2.68 meters in width, and 3.22 meters in height. The machine features a tear-out force of 95 kN, a dredging depth of 5.19 meters, and a maximum horizontal reach of 8.11 meters. The bucket width is 1.05 meters with a capacity of 0.65 cubic meters.

Crawler Excavators Caterpillar 313D2

Technical specs - 313D2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.9 t
Transport length
7.6 m
Transport width
2.68 m
Transport height
3.22 m
Bucket capacity
0.65 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.11 m
Dredging depth
5.19 m
Tear-out force
95 kN
Bucket width
1.05 m
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
70.6 kW
Displacement
4.4 l
Cylinder bore x stroke
105x127 mm
Emission level
U.S. EPA Tier 3 / EU IIIA

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 313D2 FAQ

When was the Caterpillar 313D2 manufactured?

The Caterpillar 313D2 was first produced in 2017.

How much does the Caterpillar 313D2 weigh?

The Caterpillar 313D2 weighs 15.9 tons.

What are the transport dimensions of the Caterpillar 313D2?

The transport dimensions of the Caterpillar 313D2 are 7.6 meters in length, 2.68 meters in width, and 3.22 meters in height.

What is the fuel consumption of the Caterpillar 313D2 crawler excavator?

The Caterpillar 313D2 has a fuel consumption range of 6 to 11 liters per hour, with an average consumption of 8.4 liters per hour.

What are the undercarriage specifications of the Caterpillar 313D2?

The Caterpillar 313D2 has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Caterpillar 313D2?

The Caterpillar 313D2 has a dredging depth of 5.19 meters, a maximum horizontal reach of 8.11 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Caterpillar 313D2, and is there any power rating data available?

The Caterpillar 313D2 has a tear-out force of 95 kN. The source data does not provide any power rating information for this model.

What are the bucket specifications of the Caterpillar 313D2 excavator?

The Caterpillar 313D2 excavator has a bucket capacity of 0.65 cubic meters and a bucket width of 1.05 meters.

How much is a Caterpillar 313D2 Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 313D2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
