CX750D Case excavator specs & Dimensions (2017 - 2019)

Case CX750D is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 71.4 tons. It features a track width of 650 mm…

Case CX750D is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 71.4 tons. It features a track width of 650 mm, a transport length of 13.37 meters, a transport width of 4.17 meters, and a transport height of 4.32 meters. The machine has a tear-out force of 306 kN, a dredging depth of 8.4 meters, and a maximum horizontal reach of 13.07 meters. The bucket capacity is 2.9 cubic meters. Special equipment includes air conditioning, material handling capabilities, and track adjustment.

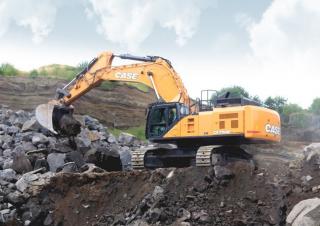

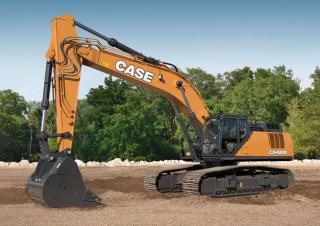

Crawler Excavators Case CX750D
Crawler Excavators Case CX750D
Crawler Excavators Case CX750D
Crawler Excavators Case CX750D
Crawler Excavators Case CX750D
Crawler Excavators Case CX750D

Technical specs - CX750D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
71.4 t
Transport length
13.37 m
Transport width
4.17 m
Transport height
4.32 m
Bucket capacity
2.9 m³
Undercarriage
LCV
Track width
650 mm
Boom
MB
Max. Reach horizontal
13.07 m
Dredging depth
8.4 m
Tear-out force
306 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AH 6 WG 1 X
Engine power
382 kW
Displacement
15.7 l
Revolutions at max torque
1450 rpm
Max. torque
2200 Nm
No. of cylinders
6
Cylinder bore x stroke
147 x 154 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Buy full specs

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX750D FAQ

When was the Case CX750D manufactured?

The Case CX750D was manufactured from 2017 to 2019.

How much does the Case CX750D weigh?

The Case CX750D weighs 71.4 tons.

What are the transport dimensions of the Case CX750D crawler excavator?

The Case CX750D has a transport length of 13.37 meters, a transport width of 4.17 meters, and a transport height of 4.32 meters.

What are the undercarriage specifications of the Case CX750D crawler excavator?

The Case CX750D features a long undercarriage that is hydraulically extendable, with a track width of 650 mm.

What are the excavation performance specifications of the Case CX750D?

The Case CX750D has a dredging depth of 8.4 meters, a maximum horizontal reach of 13.07 meters, and is equipped with a monobloc boom.

What are the power ratings of the Case CX750D?

The source data does not provide power rating information for the Case CX750D.

What is the bucket capacity of the Case CX750D crawler excavator?

The Case CX750D crawler excavator has a bucket capacity of 2.9 cubic meters.

How much is a Case CX750D Crawler excavator (2017u20132019) worth?

The residual value of the Case CX750D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
