CX500D ME Case excavator specs & Dimensions (2016 - 2019)

Case CX500D ME is a crawler excavator manufactured from 2016 to 2019. It has a weight of 51 tons and a track width of 600 mm. The …

Case CX500D ME is a crawler excavator manufactured from 2016 to 2019. It has a weight of 51 tons and a track width of 600 mm. The transport dimensions are 11.66 meters in length, 3.49 meters in width, and 3.8 meters in height. The machine features a tear-out force of 287 kN, a dredging depth of 6.34 meters, and a maximum horizontal reach of 10.52 meters. The bucket width is 2 meters with a capacity of 3 cubic meters. Special equipment includes air conditioning, material handling capabilities, an overload alert system, and track adjustment.

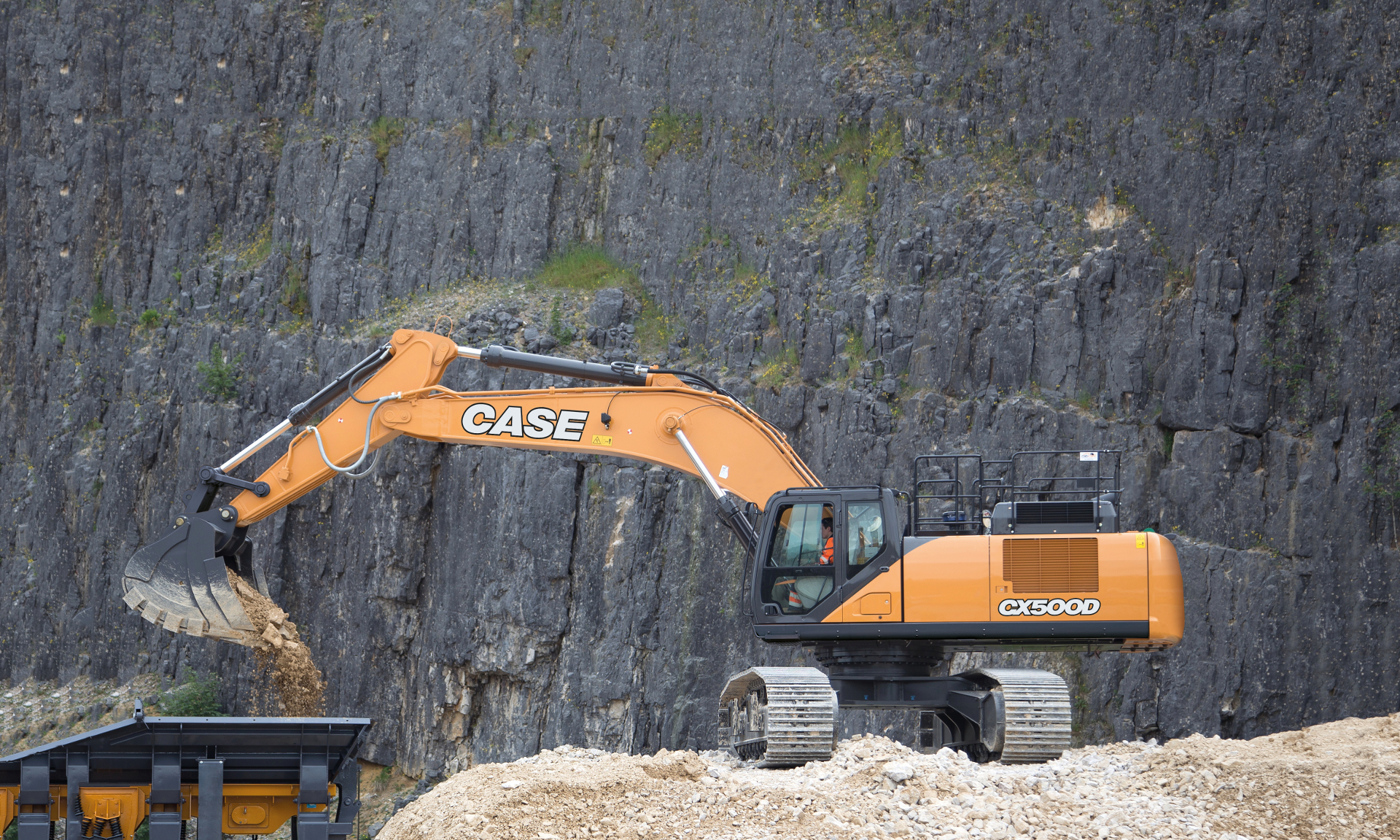

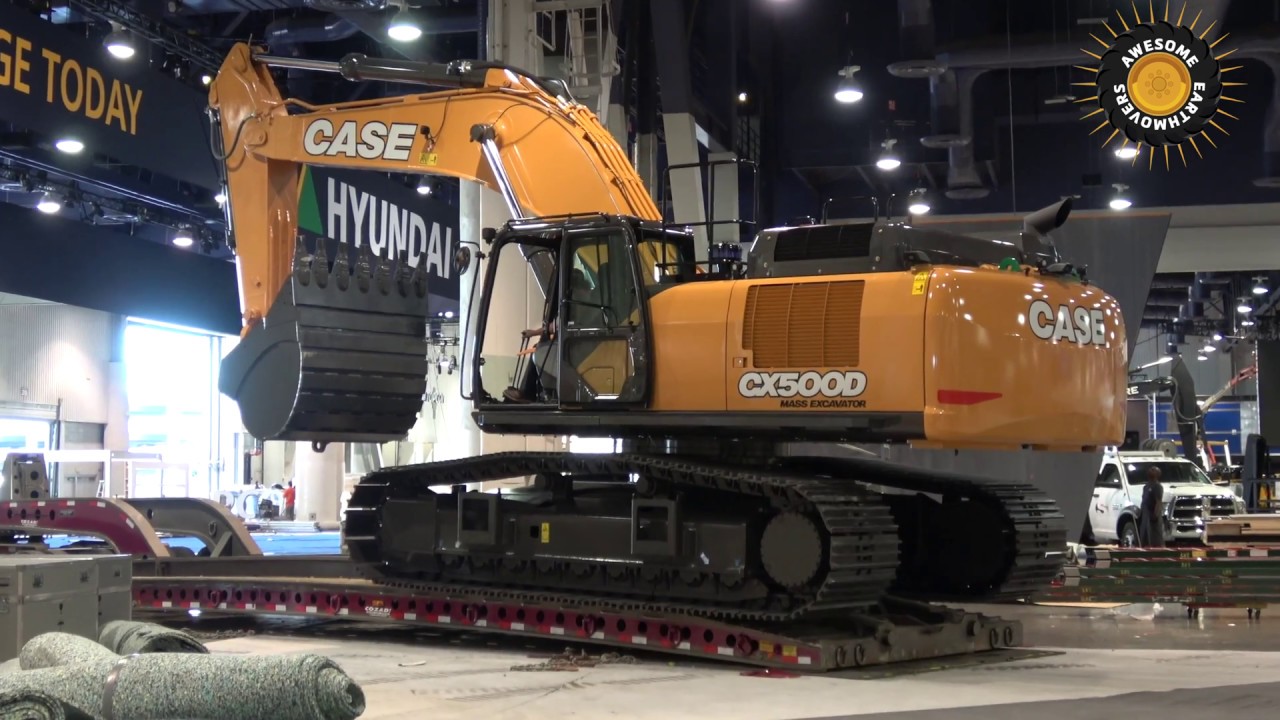

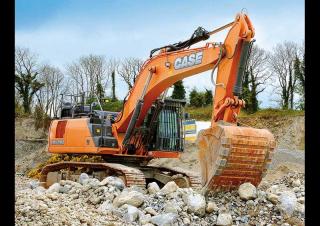

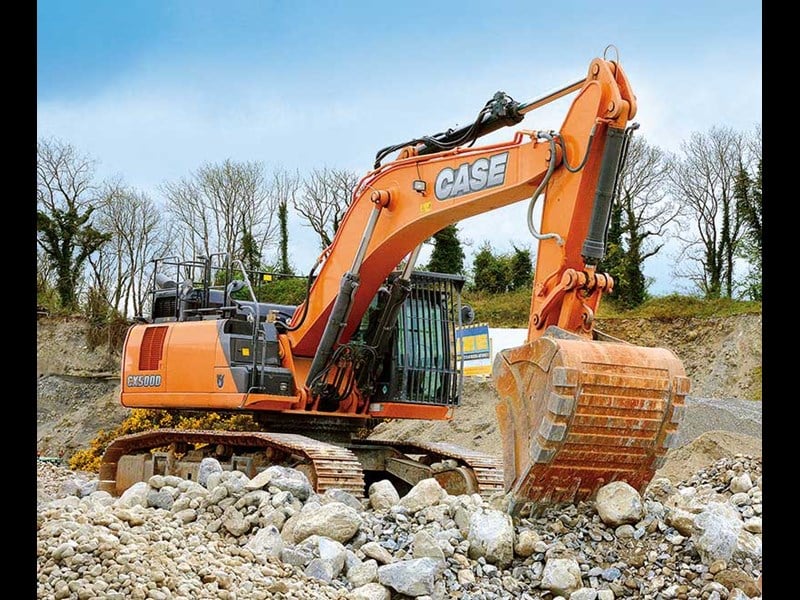

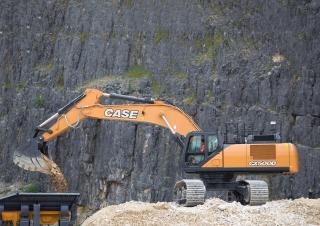

Crawler Excavators Case CX500D ME
Crawler Excavators Case CX500D ME
Crawler Excavators Case CX500D ME
Crawler Excavators Case CX500D ME
Crawler Excavators Case CX500D ME
Crawler Excavators Case CX500D ME

Technical specs - CX500D ME Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
51 t
Transport length
11.66 m
Transport width
3.49 m
Transport height
3.8 m
Bucket capacity
3 m³
Undercarriage
LCV
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.52 m
Dredging depth
6.34 m
Tear-out force
287 kN
Bucket width
2 m
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 6 UZ 1 X
Engine power
270 kW
Displacement
9.84 l
Revolutions at max torque
1500 rpm
Max. torque
1363 Nm
No. of cylinders
6
Cylinder bore x stroke
120 x 145 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX500D ME FAQ

When was the Case CX500D ME manufactured?

The Case CX500D ME was manufactured from 2016 to 2019.

How much does the Case CX500D ME weigh?

The Case CX500D ME weighs 51 tons.

What are the transport dimensions of the Case CX500D ME crawler excavator?

The Case CX500D ME has a transport length of 11.66 meters, a transport width of 3.49 meters, and a transport height of 3.8 meters.

What are the undercarriage specifications of the Case CX500D ME?

The Case CX500D ME has a long undercarriage that is hydraulically extendable and features a track width of 600 mm.

What are the excavation performance specifications of the Case CX500D ME?

The Case CX500D ME has a dredging depth of 6.34 meters, a maximum horizontal reach of 10.52 meters, and features a monobloc boom.

What is the power rating of the Case CX500D ME?

There is no power rating data available for the Case CX500D ME in the provided information.

What are the specifications of the primary work tool on the Case CX500D ME?

The primary work tool of the Case CX500D ME has a bucket capacity of 3 cubic meters and a bucket width of 2 meters.
