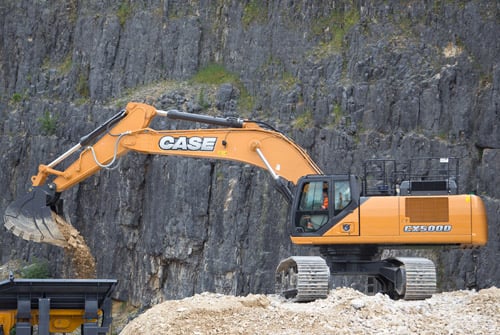

    Technical specs - CX500D ME Case

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 49.6 t
    Transport length 11.68 m
    Transport width 3.35 m
    Transport height 3.65 m
    Bucket capacity 3 m³
    Undercarriage SL
    Track width 600 mm
    Boom MB
    Max. Reach horizontal 10.55 m
    Dredging depth 6.49 m
    Tear-out force 287 kN
    Bucket width 2 m
    Engine manuf. Isuzu
    Engine type AQ 6 UZ 1 X
    Engine power 270 kW
    Engine power 362 HP
    Displacement 9.84 l
    Revolutions at max torque 1500 rpm
    Max. torque 1363 Nm
    No. of cylinders 6
    Cylinder bore x stroke 120 x 145 mm
    Emission level Tier 4 f
    Bucket capacity min. ###
    Bucket capacity max. ###
    Dimension lxwxh ###
    Weight ###
    Dipper Length - Standard ###
    Telematics Available ###
    Emission Rating ###
    Engine Manufacturer ###
    Engine Model ###
    Aspiration ###
    Rated speed ###
    Engine Output - Net ###
    Engine Output - Gross ###
    Number Of Track Rollers - Each Side ###
    Track Shoe Width ###
    Transport Length Mono Boom ###
    Transport Height - Maximum ###
    Overall Undercarriage Width ###
    Track Length On Ground ###
    Zero Tailswing? ###
    Ground Clearance ###
    Capacity Standard ###
    Heaped Bucket Capacity - Standard ###
    Overall Bucket Width - Standard ###
    Bucket Weight - Standard ###
    Digging Reach - Mono Boom ###
    Ground Level Reach - Mono Boom ###
    Dig Height - Mono Boom ###
    Dump Height - Mono Boom ###
    Dig Depth - Mono Boom ###
    Mono Boom - Size ###
    Standard Dipper ###
    Fuel Tank ###
    Hydraulic Tank ###
    Ground Bearing Pressure ###
    Dipper Tearout ###
    Bucket Breakout ###
    End lift - Max Reach ###
    Side lift - Max Reach ###
    Main Pump ###
    Total Flow ###
    Boom Pressure ###
    Operating Weight ###

    Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

    CX500D ME Case - Special equipment

    • Diesel particulate filter
    • Track adaption
    • Blade
    • Cabin adjustment
    • Overload alert
    • Material Handling Excavator
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Download data sheets - Case CX500D ME

    X

    What do you think about this machine?


    Sell your Case CX500D ME fast and easy

    Receive the best purchase offer² within 48 hours¹ from the network of WeBuyHeavyMachines.com with over 1,000 international dealers.

    Compare Case CX500D ME with other models

    Press 1 image

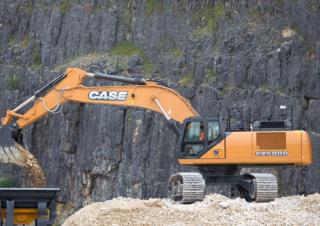

    Case CX500D ME
