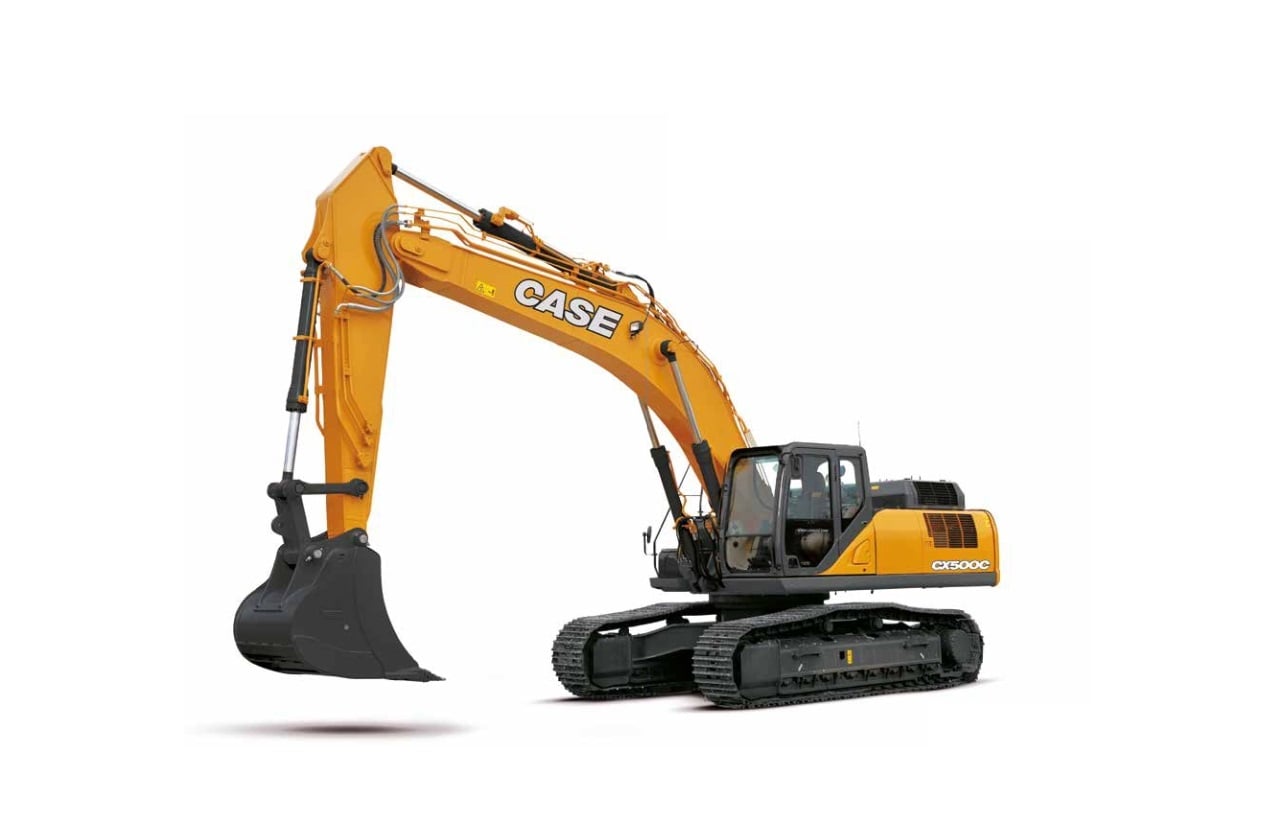

CX500C Case excavator specs & Dimensions (2021 - 2026)

Case CX500C is a crawler excavator manufactured since 2021. It has a weight of 49.3 tons and a track width of 600 mm. The transpor…

Case CX500C is a crawler excavator manufactured since 2021. It has a weight of 49.3 tons and a track width of 600 mm. The transport dimensions are 11.68 meters in length, 3.35 meters in width, and 3.28 meters in height. The machine features a tear-out force of 300 kN, a dredging depth of 6.6 meters, and a maximum horizontal reach of 10.7 meters. The bucket capacity is 2.8 cubic meters.

Crawler Excavators Case CX500C

Technical specs - CX500C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.3 t
Transport length
11.68 m
Transport width
3.35 m
Transport height
3.28 m
Bucket capacity
2.8 m³
Track width
600 mm
Max. Reach horizontal
10.7 m
Dredging depth
6.6 m
Tear-out force
300 kN
Model series
C
Engine manuf.
Isuzu
Engine type
GH-6UZ1X
Engine power
245 kW
Displacement
9.84 l
Revolutions at max torque
1500 rpm
Max. torque
1363 Nm
No. of cylinders
6
Cylinder bore x stroke
120x145 mm
Emission level
Tier III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX500C FAQ

When was the Case CX500C manufactured?

The Case CX500C was first produced in 2021.

How much does the Case CX500C weigh?

The Case CX500C weighs 49.3 tons.

What are the transport dimensions of the Case CX500C crawler excavator?

The Case CX500C crawler excavator has a transport length of 11.68 meters, a transport width of 3.35 meters, and a transport height of 3.28 meters.

What is the track width of the Case CX500C crawler excavator?

The Case CX500C crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Case CX500C?

The Case CX500C has a dredging depth of 6.6 meters and a maximum horizontal reach of 10.7 meters.

What power rating information is available for the Case CX500C?

There is no power rating information available for the Case CX500C in the provided data.

What is the bucket capacity of the Case CX500C excavator?

The Case CX500C excavator has a bucket capacity of 2.8 cubic meters.

How much is a Case CX500C Crawler excavator (2021u20132025) worth?

The residual value of the Case CX500C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
