CX490D  Case excavator specs & Dimensions (2016 - 2019)

Case CX490D is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 49.4 tons and a track width of 600 mm. The t…

Case CX490D is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 49.4 tons and a track width of 600 mm. The transport dimensions are 12.06 meters in length, 3.49 meters in width, and 3.8 meters in height. The machine features a tear-out force of 247 kN, a dredging depth of 7.57 meters, and a maximum horizontal reach of 11.72 meters. The bucket width is 1.5 meters with a capacity of 2 cubic meters. Special equipment includes air conditioning, a hydraulic quick hitch, and track adjustment.

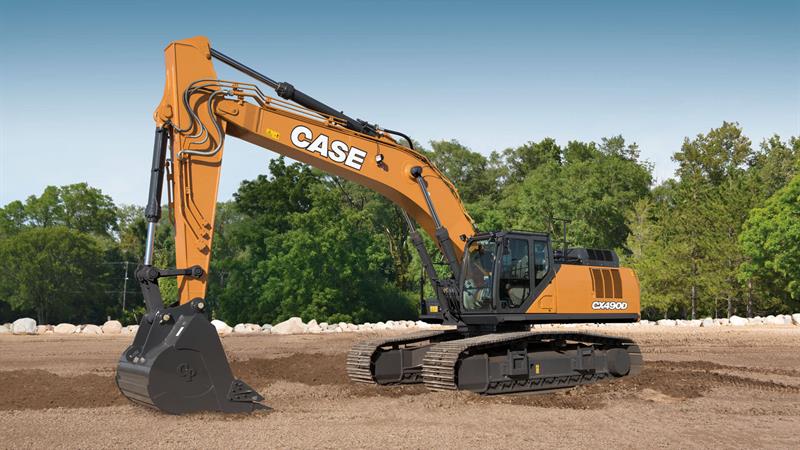

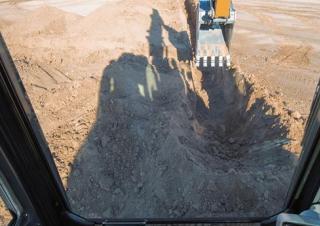

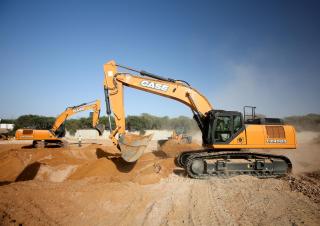

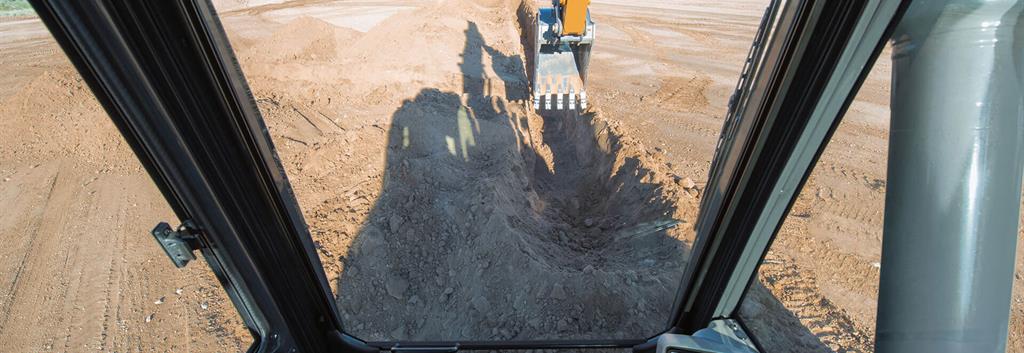

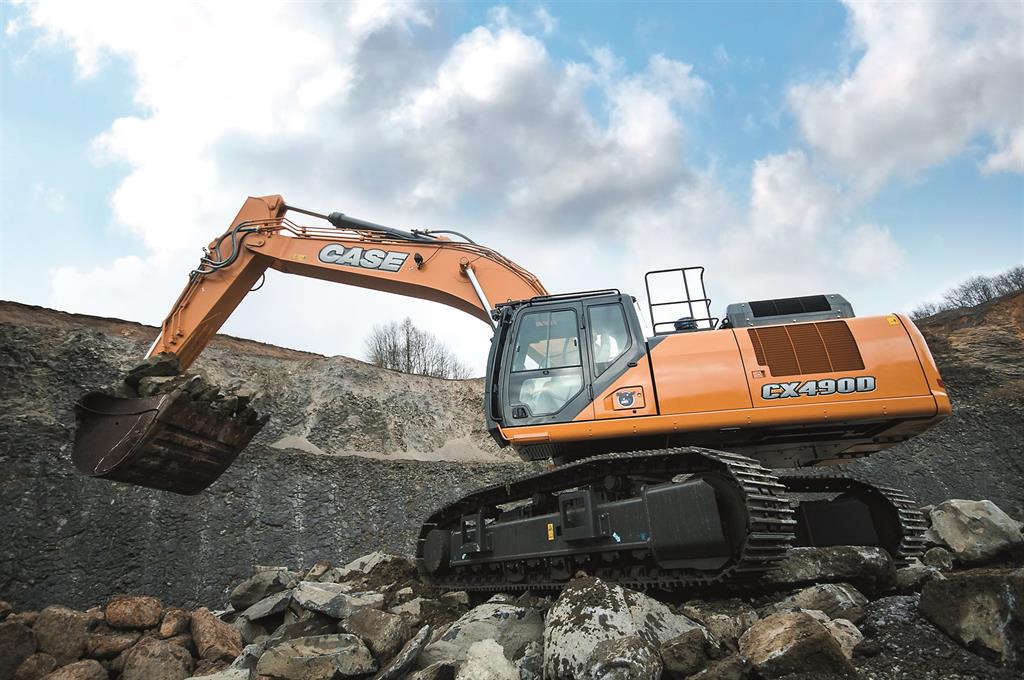

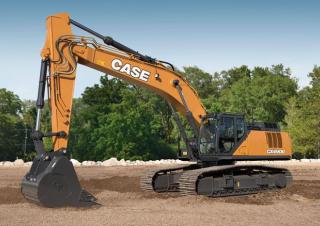

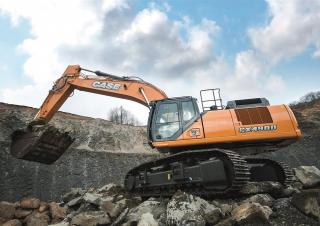

Crawler Excavators Case CX490D
Crawler Excavators Case CX490D
Crawler Excavators Case CX490D
Crawler Excavators Case CX490D
Crawler Excavators Case CX490D
Crawler Excavators Case CX490D
Crawler Excavators Case CX490D
Crawler Excavators Case CX490D

Technical specs - CX490D  Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.4 t
Transport length
12.06 m
Transport width
3.49 m
Transport height
3.8 m
Bucket capacity
2 m³
Undercarriage
LCV
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.72 m
Dredging depth
7.57 m
Tear-out force
247 kN
Bucket width
1.5 m
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 6 UZ 1 X
Engine power
270 kW
Displacement
9.84 l
Revolutions at max torque
1500 rpm
Max. torque
1363 Nm
No. of cylinders
6
Cylinder bore x stroke
120 x 145 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX490D  FAQ

When was the Case CX490D manufactured?

The Case CX490D was manufactured from 2016 to 2019.

How much does the Case CX490D weigh?

The Case CX490D weighs 49.4 tons.

What are the transport dimensions of the Case CX490D?

The Case CX490D has a transport length of 12.06 meters, a transport width of 3.49 meters, and a transport height of 3.8 meters.

What are the undercarriage specifications of the Case CX490D?

The Case CX490D has a long undercarriage that is hydraulically extendable and features a track width of 600 mm.

What are the excavation performance specifications of the Case CX490D?

The Case CX490D has a dredging depth of 7.57 meters, a maximum horizontal reach of 11.72 meters, and features a monobloc boom.

What is the power rating of the Case CX490D?

Power rating data is not available for the Case CX490D in the provided information.

What are the bucket specifications of the Case CX490D?

The Case CX490D has a bucket capacity of 2 cubic meters and a bucket width of 1.5 meters.

How much is a Case CX490Du00a0 Crawler excavator (2016u20132019) worth?

The residual value of the Case CX490Du00a0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
