CX470C  Case excavator specs & Dimensions (2015 - 2017)

Case CX470C is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 49.3 tons and a track width of 600 mm. The t…

Case CX470C is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 49.3 tons and a track width of 600 mm. The transport dimensions are 12 meters in length, 3.35 meters in width, and 4.3 meters in height. The excavator features a tear-out force of 229 kN, a dredging depth of 7.55 meters, and a maximum horizontal reach of 12 meters. The bucket width is 2 meters with a capacity of 2.4 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, material handling capabilities, an overload alert system, and track adjustment.

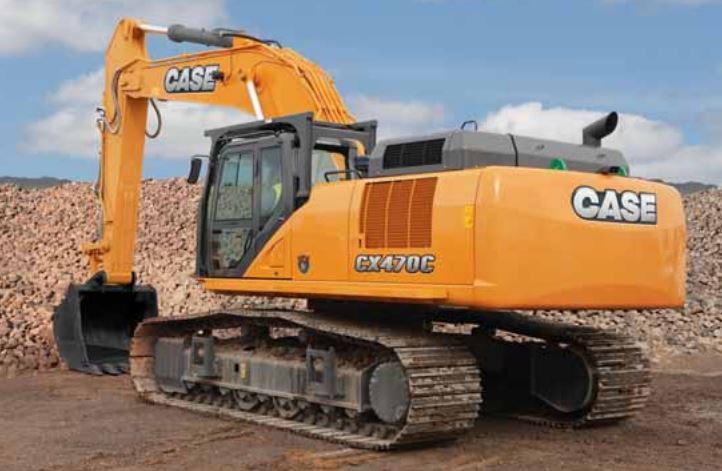

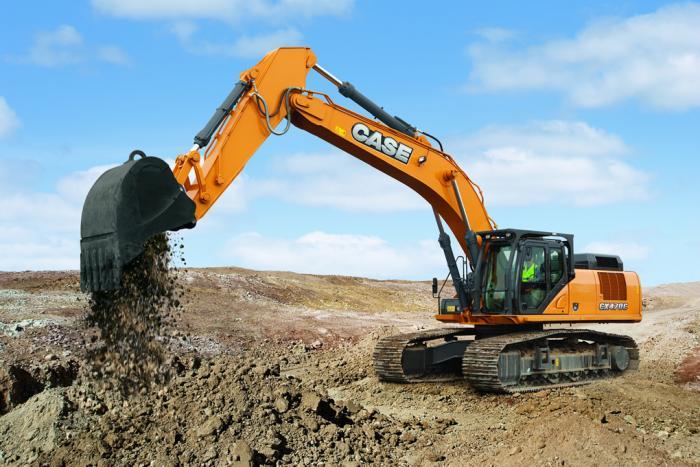

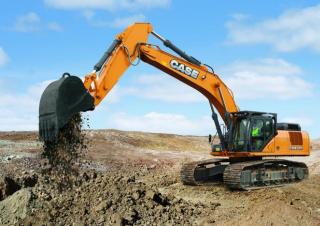

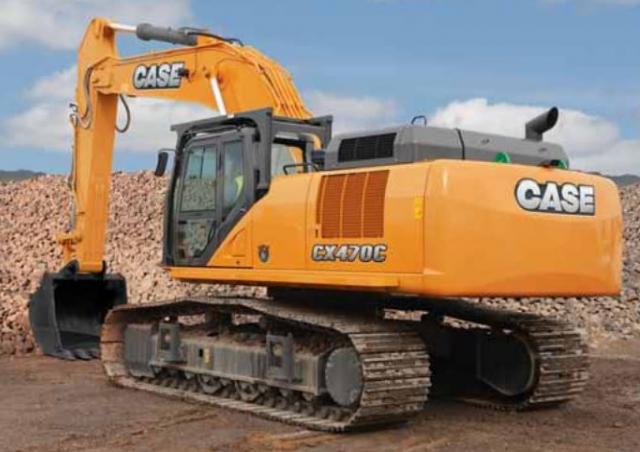

Crawler Excavators Case CX470C
Crawler Excavators Case CX470C
Crawler Excavators Case CX470C
Crawler Excavators Case CX470C

Technical specs - CX470C  Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.3 t
Transport length
12 m
Transport width
3.35 m
Transport height
4.3 m
Bucket capacity
2.4 m³
Undercarriage
LCV
Track width
600 mm
Boom
MB
Max. Reach horizontal
12 m
Dredging depth
7.55 m
Tear-out force
229 kN
Bucket width
2 m
Model series
C
Engine manuf.
Isuzu
Engine type
AL 6 UZ 1 X
Engine power
270 kW
Displacement
9.8 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX470C  FAQ

When was the Case CX470C manufactured?

The Case CX470C was manufactured from 2015 to 2017.

How much does the Case CX470C weigh?

The Case CX470C weighs 49.3 tons.

What are the transport dimensions of the Case CX470C crawler excavator?

The Case CX470C crawler excavator has a transport length of 12 meters, a transport width of 3.35 meters, and a transport height of 4.3 meters.

What are the undercarriage specifications of the Case CX470C?

The Case CX470C has a long undercarriage with a hydraulic extendable feature and a track width of 600 mm.

What are the excavation performance specifications of the Case CX470C?

The Case CX470C has a dredging depth of 7.55 meters, a maximum horizontal reach of 12 meters, and features a monobloc boom.

What is the tear-out force of the Case CX470C, given that no power ratings are provided?

The Case CX470C has a tear-out force of 229 kN.

What are the specifications of the bucket on the Case CX470C crawler excavator?

The bucket of the Case CX470C has a capacity of 2.4 cubic meters and a width of 2 meters.

How much is a Case CX470Cu00a0 Crawler excavator (2015u20132017) worth?

The residual value of the Case CX470Cu00a0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
